GO REGULATOR调节器PR1-1B11A3E114

GO REGULATOR调节器和阀门旨在满足广泛的应用，控制压力，同时适应许多气体和液体的低至中等流速。

GO REGULATOR 提供全面的标准化和压力调节器、隔膜阀和过滤器产品组合。

GO REGULATOR调节器PR1-1B11A3E114技术参数

GO REGULATOR调节器PR1介绍

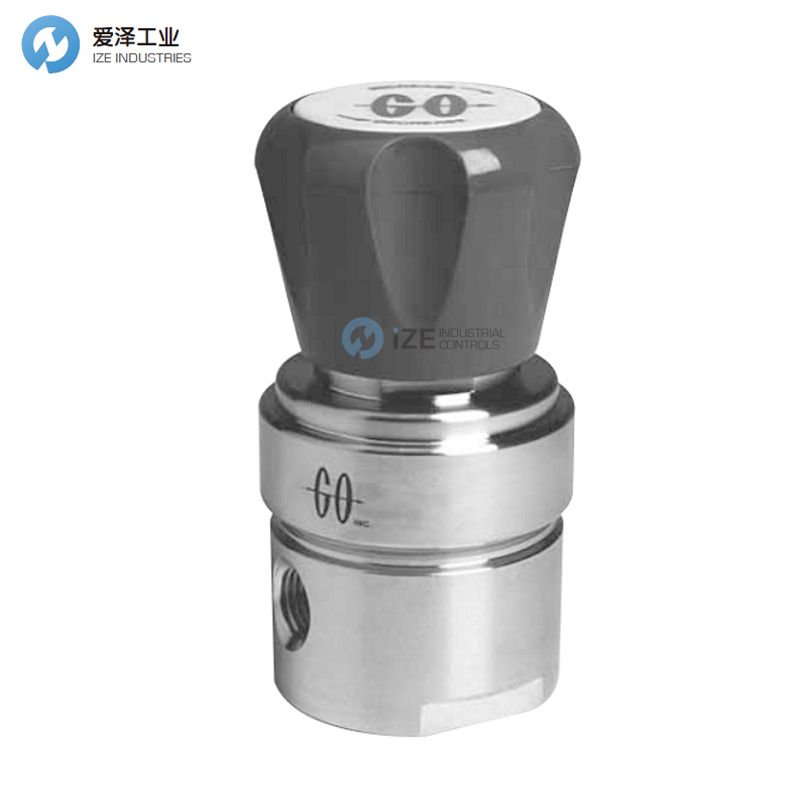

PR-1系列是一款多功能特种减压控制阀，旨在满足仪器取样系统及其他应用（如半导体处理气体）中的广泛需求。

PR-1的众多特性使其非常适合在气体或液体服务中控制低至中等流量的压力。采用316L不锈钢以便于焊接连接。

不锈钢盖和调节螺丝可防止大气腐蚀并保持外观。内部主体表面处理标准为小于25 Ra。结合电解抛光，使清洁更为方便，并可能减少流动中的颗粒污染。

四种不同的阀座材料、三种备用孔径和六个压力控制范围，配合不锈钢膜片，为用户提供了广泛的压力和流量控制能力。

The PR-1 Series is a versatile specialty pressure reducing control valve designed to fulfill a wide range of needs in instrumentation sample systems and other applications such as semiconductor processing gases.

The many features of the PR-1 make it ideal for a wide range of applications controlling pressures at low to moderate flows in gas or liquid service. 316L stainless steel is used to facilitate welded connections.

Stainless steel caps and adjusting screws prevent atmospheric corrosion and maintain appearance. The internal body surface finish is less than 25 Ra as standard. This, coupled with electropolishing, allows easier cleaning and potentially less particle contamination in the flow stream.

Four different seat materials, three alternate orifice sizes and six pressure control ranges with stainless steel diaphragms offer the user a wide spectrum of capabilities for pressure and flow control.

GO REGULATOR调节器其他常用型号：

GO REGULATOR PR1-1B11A3E114

GO REGULATOR PR1-1B11B3E111

GO REGULATOR PR1-1B11A5G111

GO REGULATOR PR1-1B11B3I111

GO REGULATOR PR1-1B11B5E711S

GO REGULATOR PR1-1B11A3J111

GO REGULATOR PR1-1F11A3D111

GO REGULATOR PR1-1B11A3E111

GO REGULATOR ELECTRICALLY HEATED REGULATORS NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于GO REGULATOR调节器PR1-1B11A3E114的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for GO REGULATOR products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website:www.ize-industries.com.

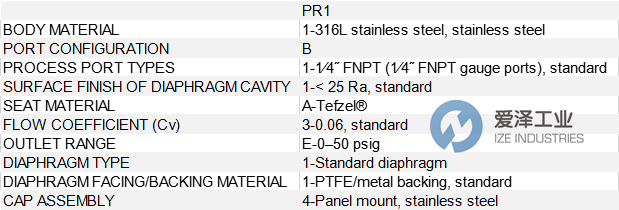

GO REGULATOR调节器PR1-1B11A3E114技术参数及选型
