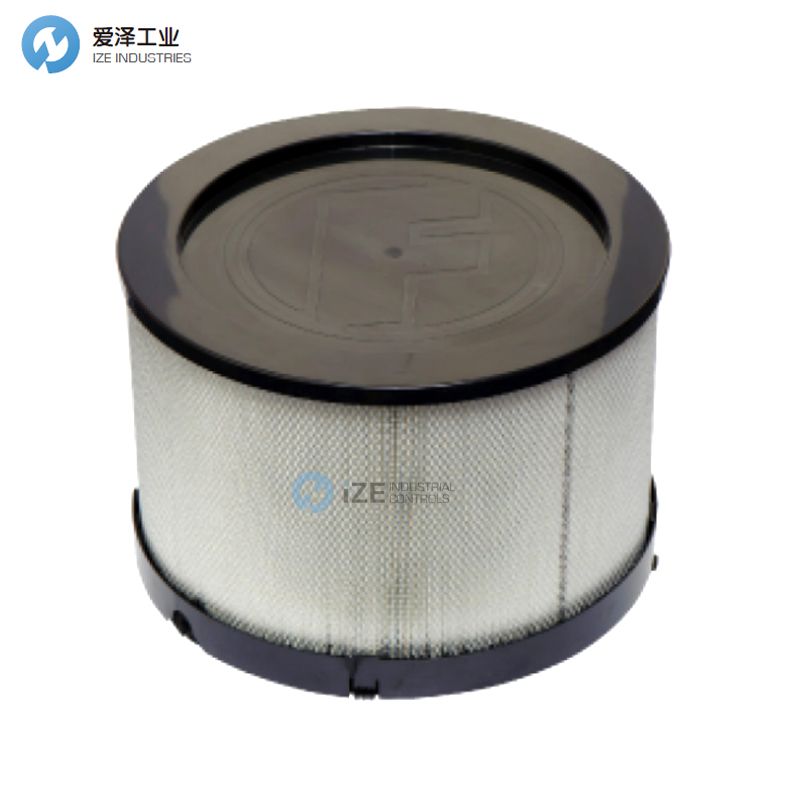

FILTERMIST过滤器2300AFA

75年来，Royal Products一直优化CNC 机床生产力。作为ISO-9001注册公司，Royal致力于成为持续改进CNC的配件供应商。

FILTERMIST过滤器2300AFA产品参数

FILTERMIST过滤器产品介绍

描述

2300AFA/AFB 后过滤器专为连接 Filtermist S400 和 S800 油雾过滤装置而设计。

后过滤器旨在去除油烟以及通过 Filtermist 油雾收集器后仍残留的亚微米颗粒。这些后过滤器可以便捷地安装在 Filtermist 设备的排气端，采用夹子固定到位。

后过滤器是一种媒体过滤筒，通过形成物理屏障，使空气必须通过过滤材料。其使用寿命取决于具体应用，对于产生烟雾或非常细的油粒的场合，建议安装后过滤器以确保过滤效果。

过滤器由连续折叠的过滤介质制成，顶部为注塑成型的端盖，底部为整体成型的基座，带有一体成型的钩子。折叠的滤料外侧由铝网支撑。基座周围设有泡沫密封，以确保空气通过滤料。该结构轻便且坚固，适用于各种工业环境。

DESCRIPTION

The 2300AFA/AFB is specifically designed for connection to the Filtermist S400 & S800 Oil Mist Filtration Units.

Afterfilters are designed for the removal of oil smoke and any submicron particles that have passed through the Filtermist oil mist collector unit. The afterfilters are retrofitted to the Filtermist unit and fit easily over the exhaust end of the unit using clips to hold it in place.

The afterfilter is a media type filter cartridge creating a physical barrier through which the air must pass,. The filters’ life depends on the application and any application producing smoke or very fine oil particles should be fitted with an afterfilter.

The filters are contructed of filter media formed into continuous pleats, injection moulded end cap at the top and a fully moulded base with integrally moulded hooks. The pleated media is then supported by aluminium mesh on the outside. There is a foam seal around the base to ensure the air flow passes through the media filter. This construction makes it very light and robust.

FILTERMIST过滤器其他常见型号：

FILTERMIST 2300AFA

FILTERMIST 2300AFB

FILTERMIST 2300FKT

FILTERMIST Filters NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于FILTERMIST过滤器2300AFA的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for FILTERMIST products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website:www.ize-industries.com.

FILTERMIST过滤器2300AFA产品介绍
