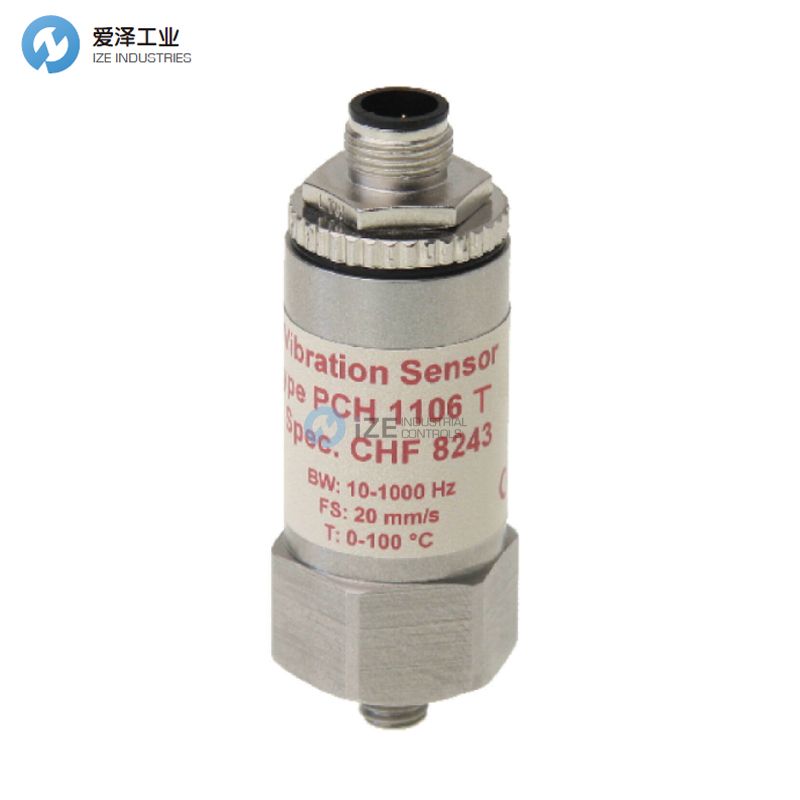

PCH振动传感器PCH1106MK2/CHF8112

PCH是一家通过ISO 9001认证的丹麦生产公司，致力于开发用于监测振动的设备。

凭借在振动监测行业超过20年的经验，PCH为传统旋转机械（例如倾析器，鼓风机，风扇，压缩机，变速箱和风力涡轮机）提供了广泛的监测解决方案。

PCH产品有：振动传感器，紧凑型显示器，冗余振动监测器，接近监视器，声音监控器，振动监测器软件

PCH振动传感器PCH1106MK2/CHF8112规格描述

PCH振动传感器PCH 1106 Mk2产品介绍

振动传感器 PCH 1106 Mk2 可以在生产环境中的多种机器上使用。它适用于监测鼓风机、通风机、泵、离心器、分离器、压缩机和粉碎机。该振动传感器连续监测机器振动水平，并提供与之相关的直流输出。当连接到PLC或CTS系统时，操作员可以实现对机器的主动保护，从而限制机器损坏，降低维护成本。可选配置包括在轴承壳体测量的轴承温度输出或原始时间波形输出。

轴承损坏

轴承损坏通常由未检测到的不平衡或不对中引起。因此，机器可能长时间运行在过高的振动水平下，这是导致严重故障和停机的主要原因。

避免计划外停机

单纯因为初始投资成本而不投资振动监测，可能是不明智的选择。这可能会导致后续的机器维修带来意外费用，甚至因生产中断造成更大的经济损失。

具有价格优势

对于希望简单保护免受破坏性振动影响的用户来说，PCH 1106 Mk2是非常具有价格竞争力的解决方案，可以方便地连接到PLC或CTS系统。

功能介绍

PCH 1106 Mk2由振动传感器和集成在不锈钢外壳中的输出电子组件组成。它根据DIN/ISO 10816标准监测机械振动。该传感器可测量速度（mm/s）、加速度（m/s2）或位移（mm），且测量数据可为真实有效值（RMS）或峰-峰值（Peak-Peak）。此外，PCH 1106 Mk2还可以配置为输出表面温度（°C）在4-20 mA信号中。

连接方式和输出信号

振动传感器可连接到PLC或机器监控系统。提供两个直流输出，分别为4-20 mA和1-5 V直流信号，比例为满量程。可选项包括温度读取或原始时间波形（100 mV/g），以替代1-5 VDC信号。

报警与预警

用户可以在PLC或CTS系统中设置不同振动水平的报警，当达到预设值时可自动触发预警或采取预防措施。

连接简便

连接振动传感器到PLC或CTS系统只需一根四线电缆。测量范围和频率范围由PCH预设，出厂时即可直接使用。

多功能应用

PCH 1106 Mk2还可以通过连接便携式仪表（如PCH 1033）进行定期测量，实时显示固定安装的PCH 1106 Mk2所监测的振动水平。

The vibration sensor PCH 1106 Mk2 can be used on many different machines in a production environment. It is suitable for monitoring blowers, ventilators, pumps, decanters, separators, compressors and mills. The vibration sensor continuously monitors the machine vibration level and gives a DC output in relation to this. When connected to a PLC or a CTS system the operator will gain an active protection of the machine, which limits the damages to the machine and consequently will reduce the maintenance costs. Optionally, PCH 1106 Mk2 can be delivered with a bearing temperature output measured on the bearing housing or a raw time waveform output.

Bearing damages

A bearing damage often occurs due to undetected unbalance or misalignment of a machine. Hence, the

machine runs for a very long period of time with a far too high vibration level. This is the most common reason for serious machine crashes and down time.

Avoid unscheduled production stops

Deciding not to invest in vibration monitoring only because of initial investments costs can be an unwise

decision. This will often lead to unexpected expenses due to machine repairs, not to mentioned the further economic losses due to a production stop.

Price attractive alternative

For users who prefer a simple protection against damaging vibrations the PCH 1106 Mk2 is very price attractive solution that easily can be connected to aPLC or CTS system.

Functionality

The vibration sensor consists of a vibration sensor as well as output electronics, which are embedded in a stainless steel housing. The PCH 1106 Mk2 monitors mechanical vibrations according to DIN/ISO 10816. The PCH 1106 Mk2 can be delivered to measure veocity (mm/s), acceleration (m/s2 ) or displacement

(mm) and measures in true RMS or Peak-Peak. Optionally, the PCH 1106 Mk2 can be delivered with a 4-20 mA surface temperature reading in °C as well.

The vibration sensor can be connected to a PLC or a machine monitoring system. Two DC outputs are

available for vibration level as a 4-20 mA and 1-5 V DC signal proportional to Full Scale to the PLC. Optionally, a temperature reading or a raw time waveform output, 100 mV/g, can be delivered instead of the 1-5 VDC signal.

Alarms for individual vibration levels can be programmed in the PLC or CTS system, where also a preventive action can be initiated.

Connecting the vibration sensor to the PLC or CTS system only requires a single cable with 4 wires. The measuring and frequency ranges are pre-set by PCH, so the vibration sensor is ready for use at delivery.

PCH 1106 Mk2 can also be used for periodic measurements by connecting a portable meter, like the PCH 1033, which displays the actual vibration level at the point of a permanently mounted PCH 1106 Mk2

PCH振动传感器其他型号：

PCH PCH1106MK2/CHF8112

PCH PCH 1106 T

PCH PCH 1106

PCH Transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于PCH振动传感器PCH1106MK2/CHF8112的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for PCH products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website: www.ize-industries.com.

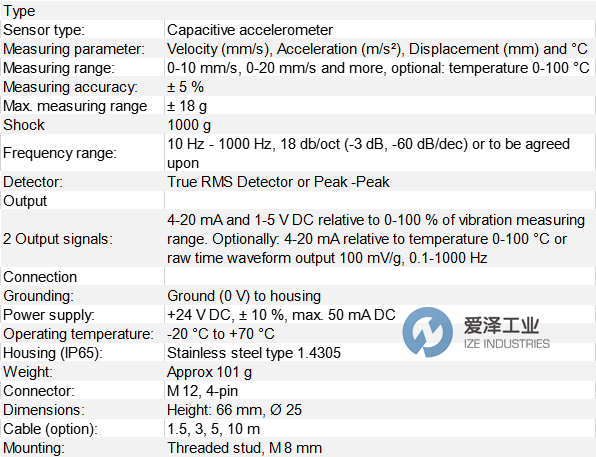

PCH振动传感器PCH1106MK2/CHF8112产品参数
