VICKERS液压泵35V25A-86A22R

威格士（EATON VICKERS）是伊顿集团流体动力部门旗下的一个全球的液压品牌，其主要产品包括液压泵、马达、油缸、液压泵等。伊顿的流体动力产品应用广泛，包括土方机械、农业、建筑、航空、采矿、林业、公共设施和物料搬运。

主营业务：

VICKERS液压泵

VICKERS马达

VICKERS油缸

VICKERS液压泵

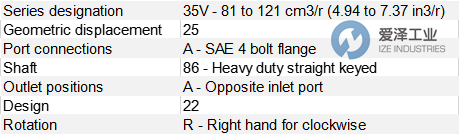

VICKERS液压泵35V25A-86A22R产品参数

VICKERS液压泵35V系列介绍

Vickers单叶片泵V系列 - 低噪音叶片泵20V、25V、35V、45V

特点与优点

体积紧凑，具有高工作压力能力，提供高功率/重量比，降低安装成本。

采用内叶片设计，噪音低，提升操作员的工作舒适度。

十二叶系统，减少脉动，降低系统噪声。

hydraulically平衡，防止内部产生的径向轴向载荷，延长泵的使用寿命。

双泵和穿轴驱动结构节省空间和成本，避免需双轴延长电机或减少电机数量和传动联轴器。

穿轴型号提供设计灵活性，可在单一输入驱动上实现固定和可变排量。

拥有十六种流量排量和高工作压力能力，满足各种流量和压力需求，支持单一来源。

工厂测试的筒夹组件确保安装即能达到新泵性能。

筒夹设计便于现场快速维修，独立于驱动轴，便于更换流量配比和维护，无需拆除泵体。

入口和出口端口可以相对定位在四种不同位置，增强安装灵活性，方便设备设计。

Vickers Single Vane Pumps V Series - Low Noise Vane Pumps 20V, 25V, 35V, 45V

Features and Benefits

• High operating pressure capabilities in compact packages provide high power to weight ratios and lower installed costs.

• Low noise characteristics inherent in intravane design enhance operator comfort.

• Twelve vane system provides low amplitude flow pulsations resulting in low system noise characteristics.

• Hydraulic balancing, designed to prevent internally-induced radial shaft and bearing loads, provides long life.

• Double pumps and thru-drive arrangements save installation space and cost by eliminating double shaft extension electric motors or by reducing the number of motors and drive couplings.

• Thru-drive models provide valuable circuit design flexibility, such as having fixed and variable displacement models on a single input drive.

• Sixteen flow displacements and high operating pressure capabilities provide optimum selection and single-source capability for your complete range of flow and pressure requirements.

• Factory tested cartridge kits provide new pump performance upon installation.

• The cartridge kit design offers fast and efficient field serviceability. The cartridge is independent of the drive shaft, allowing for easy change of flow capacity and servicing without removing the pump from its mounting.

• Inlet and outlet ports can be oriented in four different positions relative to each other, providing greater installation

flexibility and ease of machine design.

VICKERS液压泵35V系列其他常见型号：

VICKERS 35V25A-86A22R

VICKERS 35V25A-11A22L

VICKERS 35V25A-11A22R

VICKERS 35V25A-11B22R

VICKERS 35V25A-11C22L

VICKERS 35V25A-11C22R

VICKERS 35V25A-11D22R

VICKERS 35V25A-1A22L

VICKERS 35V25A-1A22R

VICKERS 35V25A-1B22L

VICKERS 35V25A-1B22R

VICKERS 35V25A-1C22L

VICKERS 35V25A-1C22R

VICKERS 35V25A-1D22L

VICKERS 35V25A-1D22R

VICKERS 35V25A-86A22L

VICKERS 35V25A-86A22R

VICKERS 35V25A-86B22R

VICKERS 35V25A-86C22L

VICKERS 35V25A-86C22R

VICKERS PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
