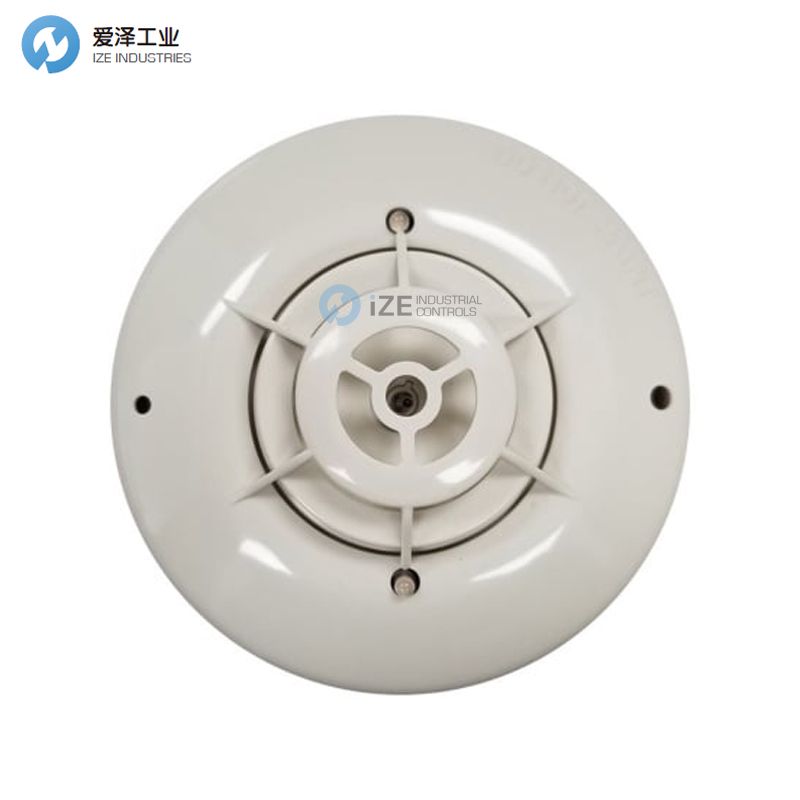

HOCHIKI热探测器DCD-135

HOCHIKI成立于1918 年，是火灾探测领域的供应商。

HOCHIKI热探测器DCD-135技术参数

HOCHIKI热探测器DCD-135产品介绍

DCD-135 描述

DCD-135 是一种固定温度/速率上升型热探测器，适合安装在预期会有高热输出火灾的地方，或在环境条件不允许使用其他探测方法的区域。热探测器旨在保护财产，不可依赖热探测器进行生命安全保护。在生命安全问题上，必须同时使用烟雾探测器。必须由获得UL认证的火灾报警面板对DCD-135热探测器进行电子监督。

所有NS常规设备在机械上与Hochiki America的HSB、HSC和YBA型基座兼容。请检查各个面板的清单以获得合适的认证基座。

DCD-135固定温度/速率上升型热探测器适合检测因可燃物燃烧导致的温度缓慢或快速上升。该型号的结构包括一个由耐用塑料保护的热敏电阻热元件。这些电子热探测器包含两个电源/报警LED，可360°指示状态。在待机状态下，电源LED闪烁为绿色。在报警状态下，LED固定为红色。

DCD-135 特点与规格

可选择固定温度/速率上升135°F或190°F热探测器

UL认证的覆盖距离为70' x 70'

高度稳定的操作，射频/瞬变保护

电源/报警LED确认探测器状态

与Hochiki SLR-24V和SIJ-24探测器及其基座兼容

监督电流：35μA @ 24 VDC

浪涌电流：*大160μA @ 24 VDC

报警电流：*大150mA @ 24 VDC

环境温度：32°F至120°F（0°C至49°C）

颜色和外壳材料：骨白色PC/ABS混合物

DCD-135 Description

DCD-135, a fixed temperature/rate-of-rise heat detector is suited for installation where high heat output fires are expected or in areas where ambient conditions would not allow the use of other detection methods. Heat detectors are intended for the protection of property. Do not rely on heat detectors for life safety protection. Where life safety is a concern, smoke detectors must also be used. A UL-listed fire alarm panel must electronically supervise the DCD-135 heat detectors.

All NS conventional devices are mechanically compatible with Hochiki America HSB, HSC, and YBA type bases. Please check individual panel listings for appropriate listed bases.

The DCD-135 fixed temperature/rate-of-rise heat detectors are suited to detect the presence of slow or fast-rising temperatures due to burning combustibles. The construction of these models incorporates a thermistor heat element protected from damage by the built-in, durable plastic guard. These electronic heat detectors incorporate two power/alarm LED's for 360° indication of status. In standby conditions the power LED's flash Green. In an alarm condition the LED's latch on Red.

DCD-135 Features & Specifications

- Choice of fixed temperature/rate-of-rise 135°F or 190°F heat detector

- UL Listed spacing up to 70' by 70'

- Highly stable operation, RF/Transient protection

- Power/alarm LED's confirm detector status

- Compatible with Hochiki SLR-24V and SIJ-24 detectors and their bases

Supervisory Current: 35μA @ 24 VDC

Surge Current: 160μA max. @ 24 VDC

Alarm Current: 150mA max. @ 24 VDC

Ambient Temperature: 32°F to 120°F | (0°C to 49°C)

Color & Case Material: Bone PC/ABS blend

HOCHIKI热探测器DCD系列其他常用型号：

HOCHIKI DCD-135

HOCHIKI DCD-190

HOCHIKI HEAT DETECTO NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于HOCHIKI热探测器DCD-135的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for HOCHIKI products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website:www.ize-industries.com.

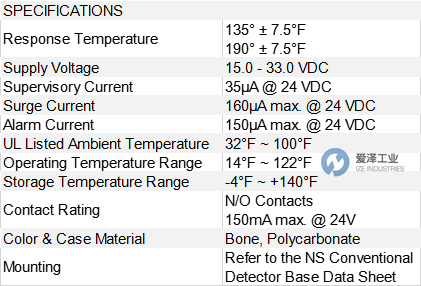

HOCHIKI热探测器DCD-135技术参数介绍
