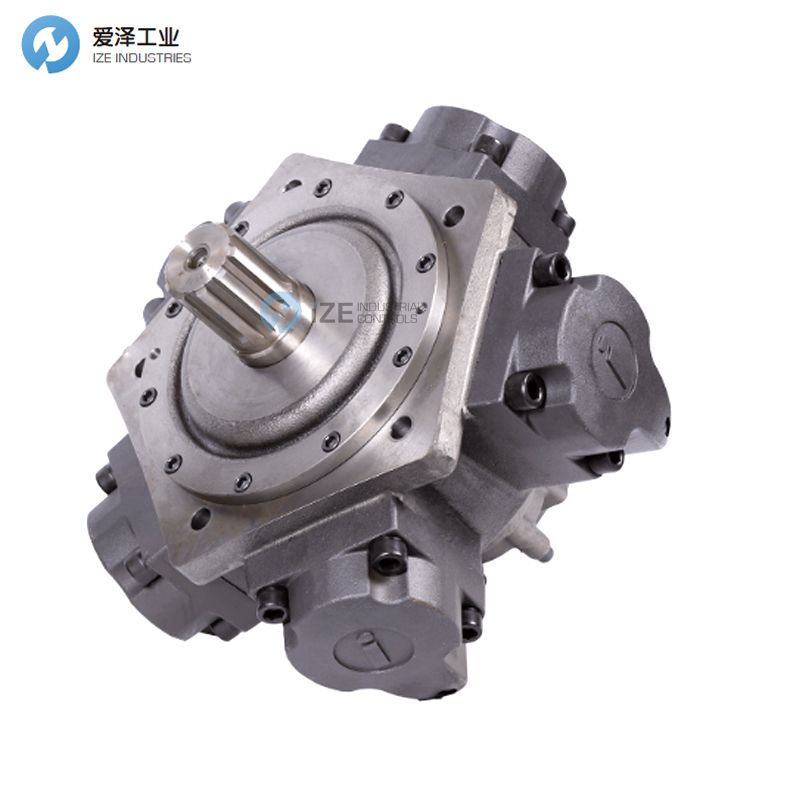

INTERMOT液压马达NHM3-400B

INTERMOT成立于1985年，自成立伊始，其主要业务是规划、生产和销售具有独特“星型”设计的径向柱塞液压马达。

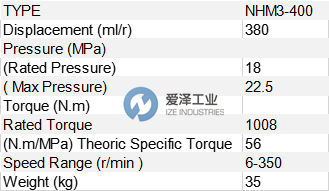

INTERMOT液压马达NHM3-400B技术参数

INTERMOT液压马达NHM系列介绍

NHM系列低速大扭矩液压马达采用曲轴和连杆，根据意大利提供的技术和标准制造。在此基础上，我们还根据市场需求不断进行技术改进，以提高产品性能。

主要特点包括：

由于偏心曲轴和五活塞设计的低激励频率，噪音低；

由于高启动扭矩和良好的低速稳定性，即使在非常低的速度下也能平稳运转；

由于专利的平面补偿分配器，可靠性强且泄漏少，活塞与柱塞套之间的特殊密封保证了更高的容积效率；

由于在曲轴和连杆之间的滚子轴承，机械效率高；

具有可逆转动，输出轴可以承受来自径向和轴向的某些外力；

功率质量比高，体积小，重量轻。

NHM series of low-speed and high-torque hydraulic motors with crankshaft and connecting rod are produced according to the technology and Standard provided by Italy. On such a foundation, we also have constant technological improvement according to market demand, so as to improve the performance of the products.

The main features include:

Low noise due to an eccentric crankshaft and low excitation frequency of five-piston design;

Revolve steadily under very low speed due to high starting torque and good low-speed stability;

Good reliability and less leakage due to the patented flat compensation distributor, special sealing between piston and plunger bushing guarantees higher volumetrical effvciency;

High mechanical efficency due to roller bearing between crankshaft and connecting rod;

Reversible rotation, and the output shaft can bear certain extermal force from both radial and axial diredtions;

High power-mass ratio, small volume and light weight.

INTERMOT液压马达NHM系列其他常用型号：

INTERMOT NHM3-400B

INTERMOT NHM2-100

INTERMOT NHM2-125

INTERMOT NHM2-150

INTERMOT NHM2-175

INTERMOT NHM2-200

INTERMOT NHM2-250

INTERMOT NHM2-280

INTERMOT NHM3-175

INTERMOT NHM3-200

INTERMOT NHM3-220

INTERMOT NHM3-250

INTERMOT NHM3-300

INTERMOT NHM3-350

INTERMOT NHM3-400

INTERMOT Hydraulic motor NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于INTERMOT液压马达NHM3-400B的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for INTERMOT products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website:www.ize-industries.com.

INTERMOT液压马达NHM3-400B技术参数
