爱泽工业2025年7月部分到货产品专题及库存——AES篇

如下为我司爱泽工业IZE_Industries本月到货AES相关产品，欢迎致电索取样本资料和产品信息。

​​​​​​​​​​​​​​

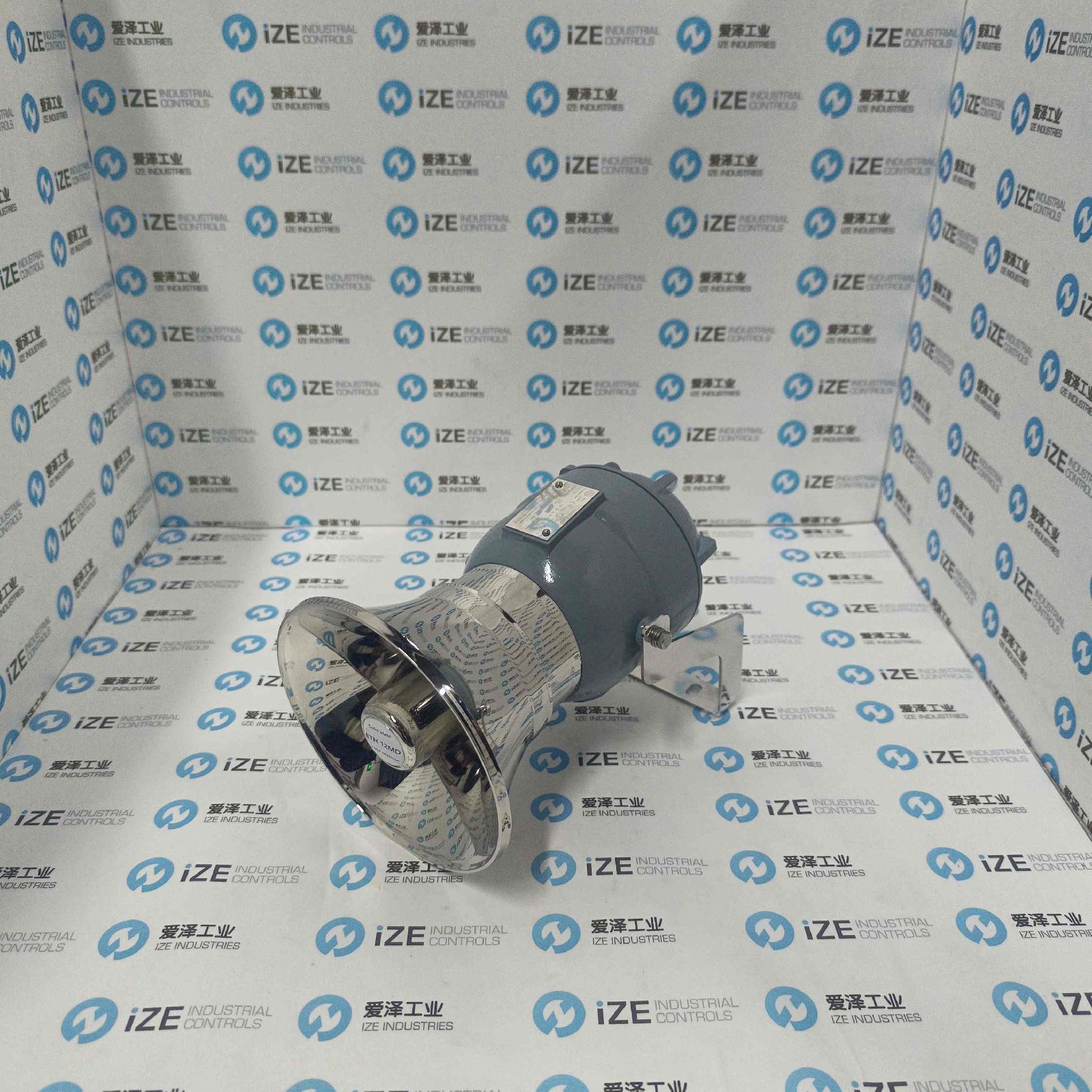

AES声音警报装置AW-ETH12MD-01-AL-15-T

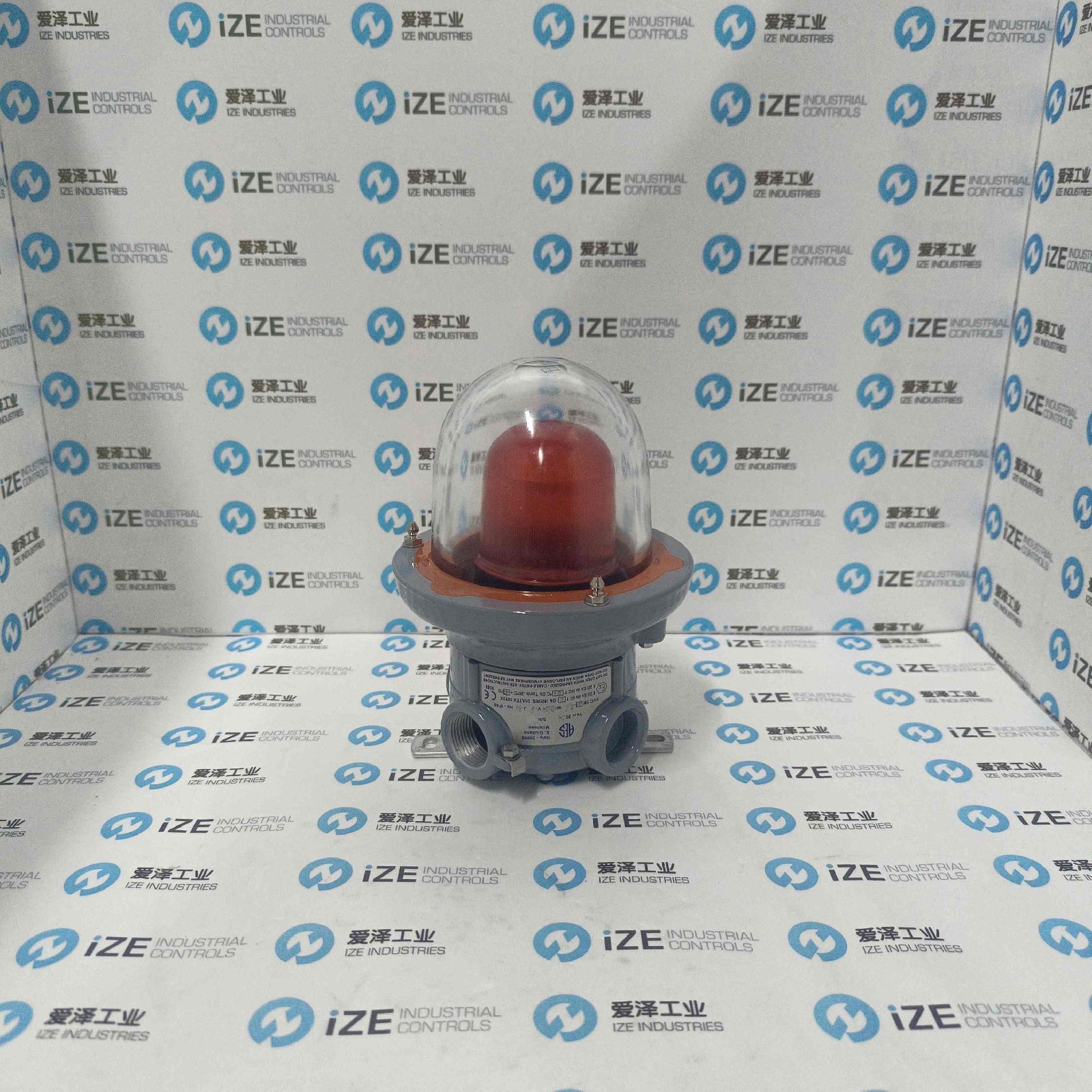

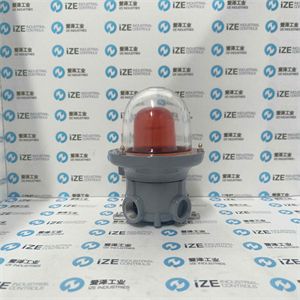

AES警报灯XF-EVC-50-AL

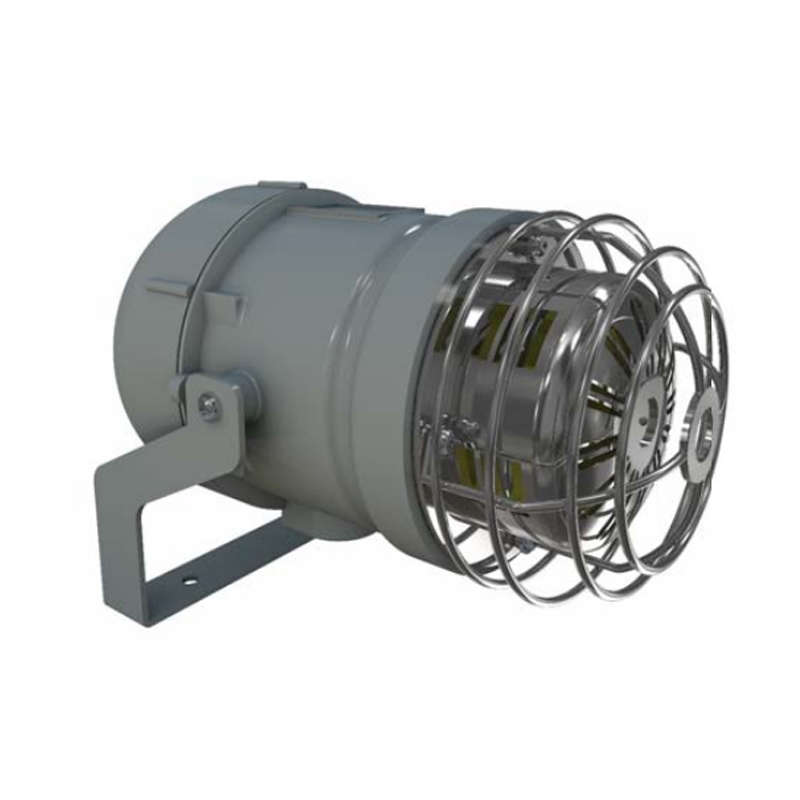

AES警报装置AW-ETH12MD系列

AW-ETH12MD 系列声音报警装置适用于低背景噪音环境下存在潜在爆炸性气体的环境。该装置配备电子电路，可通过深度开关选择 32 种音调。声波换能器的阻抗为 8 Ω，频率为 2KHz。扬声器喇叭采用防静电耐冲击镀铬 ABS 材质。标准版本采用海洋级无铜 LM6 铝材。安装支架采用 316L 不锈钢。

AW-ETH12MD 可根据要求提供：

铸铁 EN-GJL-200

不锈钢 316L

The AW-ETH12MD series of audible warning devices are for use in low background noise environments, where there is a potential explosive atmosphere. They are equipped with an electronic circuit with 32 selectable tones by a deep-switch. The acoustic trasducer has impendance of 8 Ω and frequency of 2KHz. The speaker horn is in anti-static high impact chrome ABS. Standard version is marine grade copper free LM6 aluminum. The mounting bracket is in St.St. 316L.

AW-ETH12MD on request:

Cast iron EN-GJL-200

Stainless Steel 316L

AES警报灯XF-EV系列介绍

XF-EV氙气频闪灯系列 XF-EV适用于固定式和移动式报警和预警系统。其AISI 316L不锈钢版本也适用于海上设施。标准版本由低铜含量的铝制外壳和具有高机械强度和耐高温性能的硼硅酸盐玻璃部件组成。

信号由频闪氙气灯发出，其功耗低，光学效果好，并且提供6J、12J、16J、18J和32J的功率选择。电子电路包含一个控制闪光频率的微处理器和一个驱动灯泡的电容器。不同颜色的外壳（红色、黄色、橙色、绿色、蓝色和透明色）可满足各种安装要求。LED频闪灯也可供选择。灯泡配备E27接口，可快速更换。

三种型号可供选择：

XF-EVA 悬挂式安装，带一个 3/4 英寸 NPT 螺纹孔 (ANSI/ASME B1.20.1)

XF-EVC 天花板安装，带两个或三个 3/4 英寸 NPT 螺纹孔

XF-EVJ 壁挂式安装，带两个 3/4 英寸 NPT 螺纹孔

可根据要求提供更多螺纹孔和/或其他螺纹尺寸。

三种不同尺寸的型号（EV50、EV100、EV200）提供全面的产品系列，可满足各种需求，例如空间或高可见度。

XF-EV xenon stroboscopic series XF-EV find uses in both fixed and mobile alarm and warning systems. The stainless steel AISI 316L version is also used in offshore plants. The standard version consists of a body made of aluminium with a low copper content and a borosilicate glass part with high mechanical resistance and high temperature resistance.

The signals are made by using strobe xenon lamps with high optical results in terms of consumption, thanks also to the available wattages: 6J, 12J, 16J, 18J, 32J. The electronic circuit has a microprocessor that controls the frequency of flashing and a capacitor that drives the lamp. The different colors of the shell (red, yellow, orange, green, blue, transparent) allow the various requirements of installations to be met. LED strobe lamps are also available. The optical unit is equipped with an E27 connection for rapid substitution.

Three models are available:

XF-EVA hanging installation with one 3/4” NPT openings (ANSI/ASME B1.20.1)

XF-EVC ceiling installation with two or three 3/4” NPT openings

XF-EVJ wall installation with two 3/4” NPT openings

More openings and/or other size of threads can be supplied on request.

The three models of different dimensions (EV50, EV100, EV200) provide a complete range to cover a variety of requirements such space or high visibility.

AES警报装置常用型号：

AES XF-EVA-50-AL

AES XF-EVA-100-AL

AES XF-EVA-200-AL

AES XF-EVA-50-SS

AES XF-EVC-50-AL

AES XF-EVC-100-AL

AES XF-EVC-200-AL

AES XF-EVC-50-SS

AES XF-EVJ-50-AL

AES XF-EVJ-100-AL

AES XF-EVJ-200-AL

AES XF-EVJ-50-SS

AES AW-ETH12MD-01-AL-60-T

AES AW-ETH12MD-01-AL-51-T

AES AW-ETH12MD-01-AL-50-T

AES AW-ETH12MD-01-AL-31-T

AES AW-ETH12MD-01-AL-30-T

AES AW-ETH12MD-01-AL-15-T

AES AW-ETH12MD-01-CI-60-T

AES AW-ETH12MD-01-CI-51-T

AES AW-ETH12MD-01-CI-50-T

AES AW-ETH12MD-01-CI-31-T

AES AW-ETH12MD-01-CI-30-T

AES AW-ETH12MD-01-CI-15-T

AES AW-ETH12MD-01-SS-15-T

AES AW-ETH12MD-01-SS-30-T

AES AW-ETH12MD-01-SS-31-T

AES AW-ETH12MD-01-SS-60-T

AES LF-EVA-50-AL

AES LF-EVA-100-AL

AES LF-EVA-200-AL

AES LF-EVA-300-AL

AES LF-EVC-50-AL

AES LF-EVC-100-AL

AES LF-EVC-200-AL

AES LF-EVC-300-AL

AES LF-EVJ-50-AL

AES LF-EVJ-100-AL

AES LF-EVJ-200-AL

AES LF-EVJ-300-AL

AES AW-ETH20MD-01-AL-15-T

AES AW-ETH20MD-01-AL-30-T

AES AW-ETH20MD-01-AL-31-T

AES AW-ETH20MD-01-AL-50-T

AES AW-ETH20MD-01-AL-51-T

AES AW-ETH20MD-01-AL-60-T

AES AW-ETH20MD-01-AL-15-S

AES AW-ETH20MD-01-AL-30-S

AES AW-ETH20MD-01-AL-31-S

AES AW-ETH20MD-01-AL-50-S

AES AW-ETH20MD-01-AL-51-S

AES AW-ETH20MD-01-AL-60-S

AES LS-AP60MD-01-AL-40

AES LS-AP30MD-01-AL-40

AES LS-AP30MD-01-CI-40

AES LS-AP30MD-01-SS-40

AES OL-LPA-50-AL

AES OL-LPA-50-SS

AES OL-LP-50-AL

AES OL-LP-50-SS

AES PL-EVP-50-AL

AES PL-EVP-100-AL

AES PL-EVP-200-AL

AES PL-EVP-300-AL

AES PL-EVP-50-SS

AES RS-ETS-60-AL-12-B

AES RS-ETS-60-AL-22-B

AES RS-ETS-60-AL-52-B

AES RS-ETS-60-AL-62-B

AES RS-ETS-60-AL-12-A

AES RS-ETS-60-AL-22-A

AES RS-ETS-60-AL-32-A

AES RS-ETS-60-AL-52-A

AES RS-ETS-60-AL-62-A

AES RS-ETS-30-AL-12

AES RS-ETS-30-AL-22

AES RS-ETS-30-AL-32

AES RS-ETS-30-AL-52

AES RS-ETS-30-AL-62

AES RS-ETS-30-CI-12

AES RS-ETS-30-CI-22

AES RS-ETS-30-CI-32

AES RS-ETS-30-CI-52

AES RS-ETS-30-CI-62

如果您需要完整的AES的相关技术咨询，请随时致电爱泽工业，或者访问网站,我们将尽全力解决您的问题。
