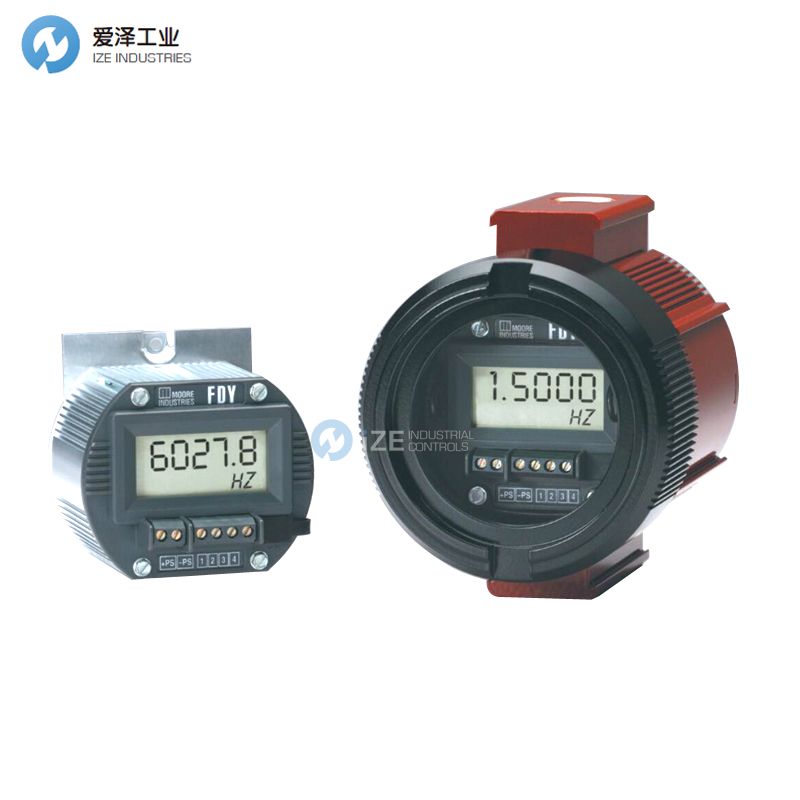

MOORE INDUSTRIES变送器FDY/PRG/4-20MA/12-42DC

MOORE INDUSTRIES是为过程监控行业设计和制造坚固、可靠和高质量的现场和 DIN 导轨安装仪表的企业。产品线包括温度变送器和组件；功能安全解决方案；信号变送器和转换器；警报跳闸和跳闸放大器；I/P 和 P/I 转换器；远程 I/O 和 RTU；HART网关、监视器和接口和更多。为许多行业提供客户服务和解决方案，包括：化学、石化、公用事业、石油开采和精炼、纸浆和造纸、食品和饮料、采矿和金属精炼、制药和生物技术。

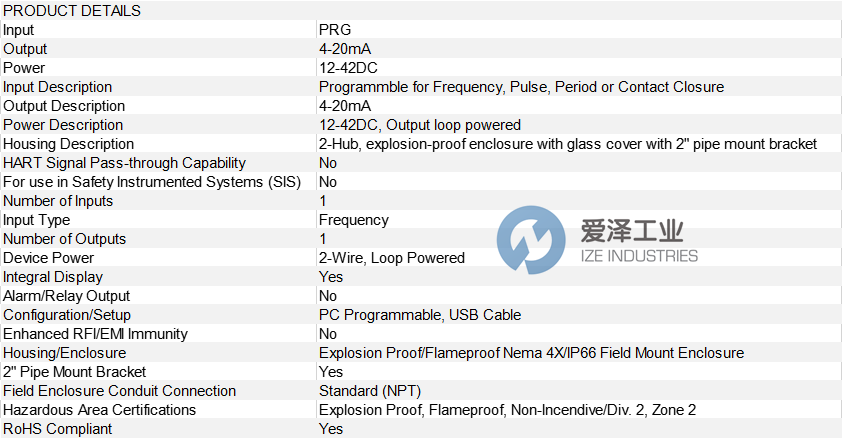

MOORE INDUSTRIES变送器FDY/PRG/4-20MA/12-42DC技术参数

MOORE INDUSTRIES变送器介绍

描述

FDY PC-可编程频率转直流传输器带显示屏，可监测频率、周期、高低脉冲宽度及触点闭合信号。它将输入信号转换为比例的、输入到输出隔离的4-20mA输出，能直接与读数仪、记录仪、PLC、DCS、SCADA系统或其他读数仪器接口。

2线环路供电的FDY非常适合在各种过程和工厂自动化监控应用中使用，包括：

• 涡轮测速发电机

• 涡轮流量计

• 磁性拾波器

• 干触点闭合

• 变频驱动器

• 转动设备

• 脉冲和频率输出传感器

• 电动机和输送机速度

特点

卓越的精度和长期稳定性。典型精度为±0.025%的量程，校准周期*长可达5年。

使用PC软件几分钟内即可配置。用户可以选择参数并确认所有应用特定的操作参数。

输入选项丰富。测量频率范围从极低的0.005Hz到高达25kHz；周期范围从40微秒到200秒；脉冲宽度范围从0.2毫秒到200秒。

用户可配置的显示屏。5位LCD显示过程变量，单位可选。

输入到输出隔离，具有抗RFI/EMI保护。能抵抗不可预料的接地环路和设备“噪声”的有害影响。

可编程移动平均滤波器。减少由弯曲涡轮叶片等频率变化引起的测量不稳定。

Description

The FDY PC-Programmable Frequency-to-DC Transmitter with Display monitors frequency, period, high or low pulse width, and contact closure signals. It converts the input signal to a proportional, input-tooutput isolated 4-20mA Output ready for direct interface with a readout instrument, recorder, PLC, DCS, SCADA system or other readout instrument.

The 2-wire (loop-powered) FDY is ideal for use in a wide range of process and factory automation monitoring applications:

• Turbine Tachometer Generators

• Turbine Flow Meters

• Magnetic Pickups • Dry Contact Closures

• Variable Frequency Drives • Rotating Equipment

• Pulse and Frequency Output Transducers

• Motor and Conveyor Speed

Features

• Exceptional accuracy and long-term stability.Typical accuracy is ±0.025% of span with up to 5 years between scheduled calibrations.

• Sets up in minutes with PC software. You can choose, and then view to confirm, all applicationspecific operating parameters.

• Versatile input choices. Measures frequency ranges between an amazingly low 0.005Hz up to 25kHz; periods from 40microseconds to 200sec; and pulse widths from 0.2msec to 200 seconds.

• User-configurable display. A 5-digit LCD shows the process variable in selectable engineering units.

• Input-to-output isolated and RFI/EMI protected. Resistant to unpredictable ground loops and the harmful effects of plant and equipment “noise”.

•Programmable moving average filter. Minimizes measurement instability caused by the effects of bent turbine blades and other frequency variations.

MOORE INDUSTRIES变送器其他常用型号：

MOORE INDUSTRIES FDY/10-250V/4-20mA/12-42DC [BH2MG]

MOORE INDUSTRIES FDY/10-250V/4-20mA/12-42DC [DN]

MOORE INDUSTRIES FDY/PRG/4-20mA/12-42DC [BH2NGP]

MOORE INDUSTRIES FDY/10-250V/4-20mA/12-42DC [DN]

MOORE INDUSTRIES FDY/10-250V/4-20mA/12-42DC [HP]

MOORE INDUSTRIES FDY/10-250V/4-20mA/12-42DC [BH2MGP]

MOORE INDUSTRIES FDY/10-250V/4-20mA/12-42DC [BH2NG]

MOORE INDUSTRIES FDY/10-250V/4-20mA/12-42DC [BH2NGP]

MOORE INDUSTRIES FDY/10-250V/4-20mA/12-42DC [SB2MG]

MOORE INDUSTRIES FDY/10-250V/4-20mA/12-42DC [SB2NG]

MOORE INDUSTRIES FDY/PRG/4-20MA/12-42DC
