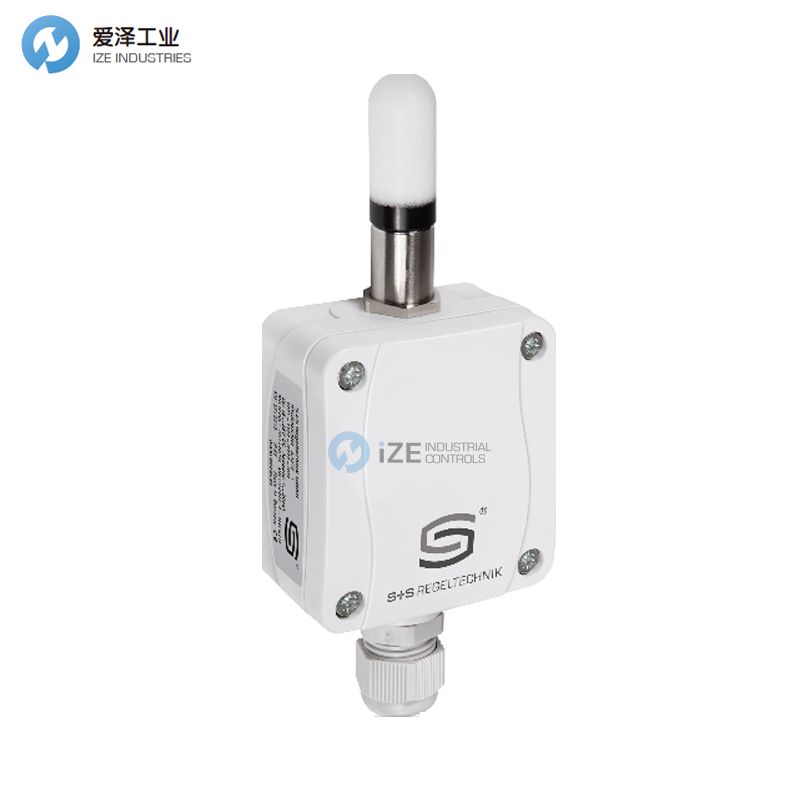

S+S温湿度传感器1201-1122-1000-100

S+S是传感器技术制造商，其产品广泛应用于楼宇自动化和机械工程领域的测量、控制和调节任务。S+S致力于提供卓越的品质、成本效益和可持续性。

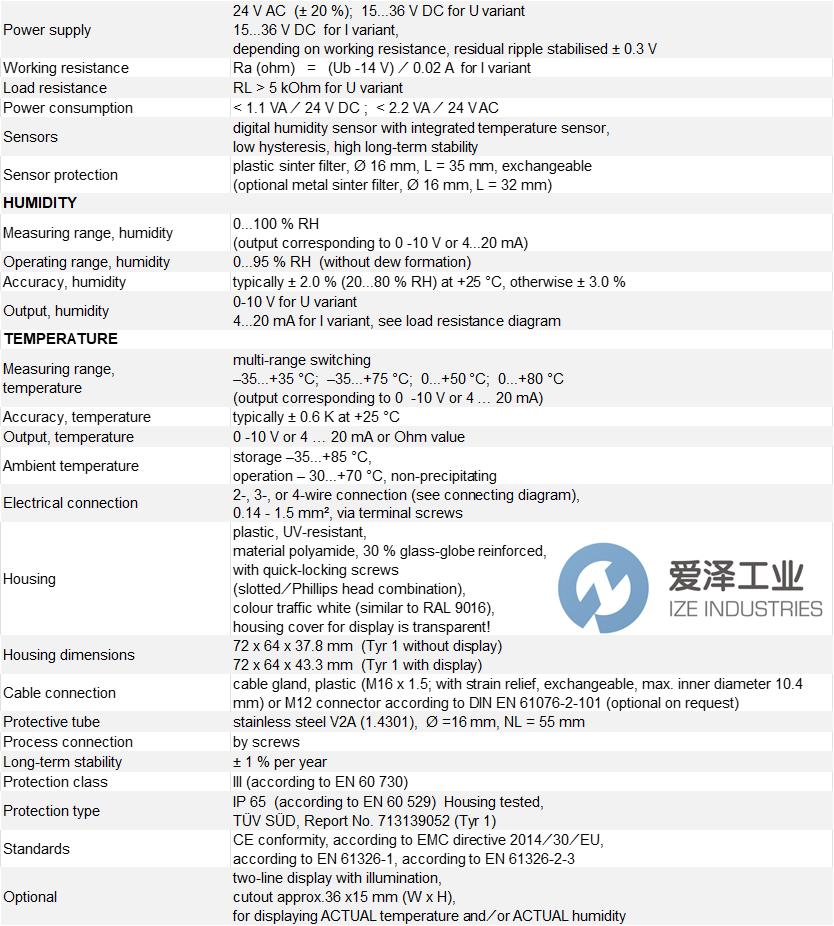

S+S温湿度传感器AFF-SD / AFTF-SD系列技术参数

S+S温湿度传感器AFF-SD / AFTF-SD系列产品介绍

适用于 HVAC 领域的优质产品，精度为 2% RH

可校准的室外湿度/温度传感器HYGRA SGARD® AFF - SD / AFTF-SD 测量空气的相对湿度和/或温度。它将测量变量转换为 0-10 V 或 4...20 mA 的标准信号，可选带/不带显示屏，接线盒外壳由抗冲击塑料制成，外壳盖带有快速释放螺钉。

测量传感器有四个可切换的温度范围，用于非腐蚀性、无尘环境、制冷、空调、通风和洁净室技术。相对湿度（以 % RH 为单位）是相应气体温度下水蒸气分压与饱和蒸气压的商。该设备设计用于精确测量湿度，并使用数字、长期稳定的传感器作为测量元件。传感器在工厂校准；可根据环境由专家进行微调。

Quality product for the HVAC sector, accuracy 2 % RH

The calibratable outdoor humidity/temperature sensor HYGRASGARD® AFF - SD / AFTF-SD measures the relative humidity and/or temperature of the air. It converts the measured variable into a standard signal of 0-10 V or 4...20 mA, is optionally available with/without display, with terminal box housing made of impact-resistant plastic, housing cover with quick-release screws.

The measuring transducer has four switchable temperature ranges and is used in non-aggressive, dust-free environments, in refrigeration, air conditioning, ventilation and clean room technology. The relative humidity (in % RH) is the quotient of the water vapor partial pressure and the saturation vapor pressure at the respective gas temperature. The device is designed for the exact measurement of humidity and uses a digital, long-term stable sensor as the measuring element. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.

S+S温湿度传感器AFF-SD / AFTF-SD系列其他常用型号：

S+S 1201-1121-1200-100

S+S 11201-1121-1000-100

S+S 11201-1122-1200-100

S+S 11201-1122-1000-100

S+S 11201-1121-0200-000

S+S 11201-1121-0000-100

S+S 11201-1122-0200-000

S+S 11201-1122-0000-100

S+S Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于S+S温湿度传感器1201-1122-1000-100的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any quesQ3Ton for S+S products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website: www.ize-industries.com.

S+S温湿度传感器AFF-SD / AFTF-SD系列1201-1122-1000-100技术参数及介绍
