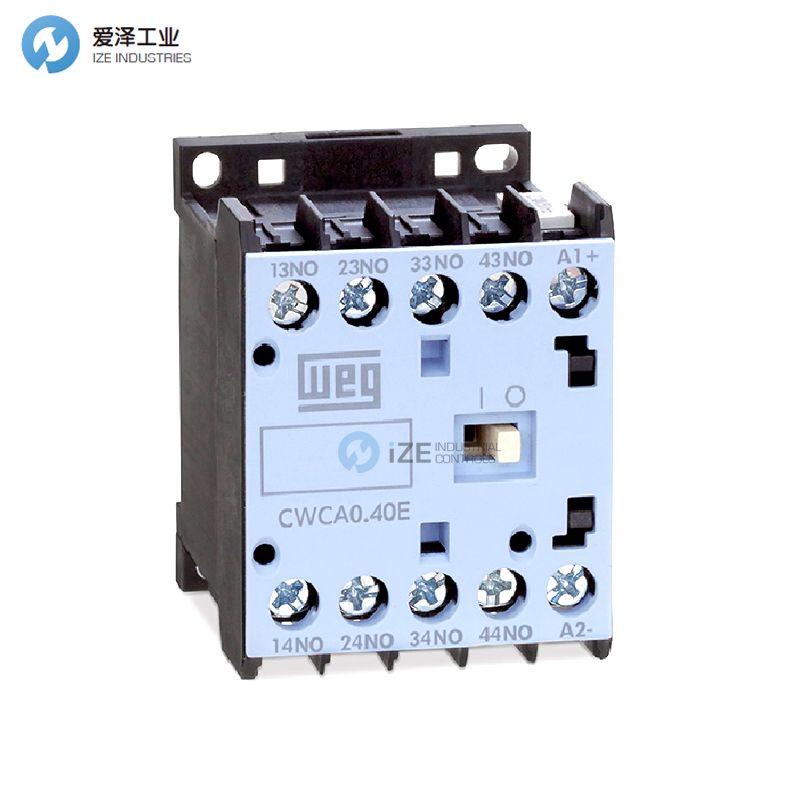

- WEG接触器BU CWCA0-40-00D23
详细信息
加工定制:否 额定电压:/ V 额定电流:/ A 品牌:WEG 型号:BU CWCA0-40-00D23 WEG创立于1961年,致力于创造优质产品和高效解决方案,生产电气和电子零部件、工业自动化产品、电力和配电变压器、液体和粉末涂料以及电气绝缘漆。
WEG接触器CWCA0系列介绍
专为控制电路中的不同应用而开发。它们可直接安装在DIN导轨EN 50.002上或用螺钉固定,尺寸紧凑,并提供齐全的配件。
CWCA0 系列辅助微型接触器和接触器专为控制电路中的各种应用而设计。
主要特点:
直接安装在35毫米DIN导轨上或用螺钉固定;
防止异物和触摸;
触点可靠性高(17 V - 5 mA);
CWCA0紧凑型接触器带有低功耗直流线圈,可直接连接到PLC;
CWCA0 型号的尺寸相同(交流或直流线圈);
CWCA0 紧凑型接触器符合 IEC 60947-5-1 关于机械连接触点的要求。
Developed for different applications on control circuits. They can be directly mounted on DIN rail EN 50.002 or tightened with screws, and offer compact size and a full line of accessories.
The CWCA0 series auxiliary miniature contactors and contactors are designed for various applications in control circuits.
Main Characteristics:
Directly mounted on DIN rail 35 mm or tightened with screws;
Protected against foreign bodies and touch;
High reliability of the contacts (17 V - 5 mA);
CWCA0 compact contactor with low-consumption DC coils, enabling direct connection to PLCs;
Same dimensions (AC or DC coil) for the CWCA0 models;
The CWCA0 compact contactors meet the requirements of IEC 60947-5-1 regarding contacts mechanically linked.
WEG接触器CWCA0系列其他常用型号:
WEG BU CWCA0-40-00D15
WEG BU CWCA0-40-00D17
WEG BU CWCA0-40-00D23
WEG BU CWCA0-40-00D23S
WEG BU CWCA0-40-00D24S
WEG BU CWCA0-40-00D25
WEG BU CWCA0-40-00D25S
WEG BU CWCA0-40-00D28
WEG BU CWCA0-40-00D33
WEG BU CWCA0-40-00D34
WEG BU CWCA0-40-00D36
WEG BU CWCA0-40-00L03
WEG BU CWCA0-40-00L03S
WEG BU CWCA0-40-00M02
WEG Contactor NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于WEG接触器BU CWCA0-40-00D23的疑问,请随时与我们沟通( )。我们将尽全力解决您的问题。
If you have any quesQ3Ton for WEG products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website: www.ize-industries.com.

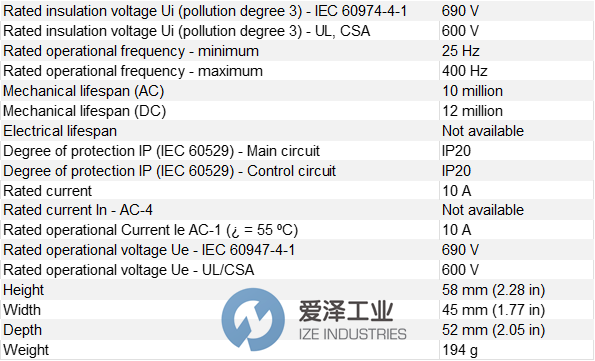

WEG接触器CWCA0系列BU CWCA0-40-00D23技术参数及介绍
-
