QUALITROL温度指示器AKM345-00422628-T

QUALITROL成立于1945年，隶属于 Ralliant 公司，为高价值电力资产和 OEM 制造公司生产监控和保护设备。

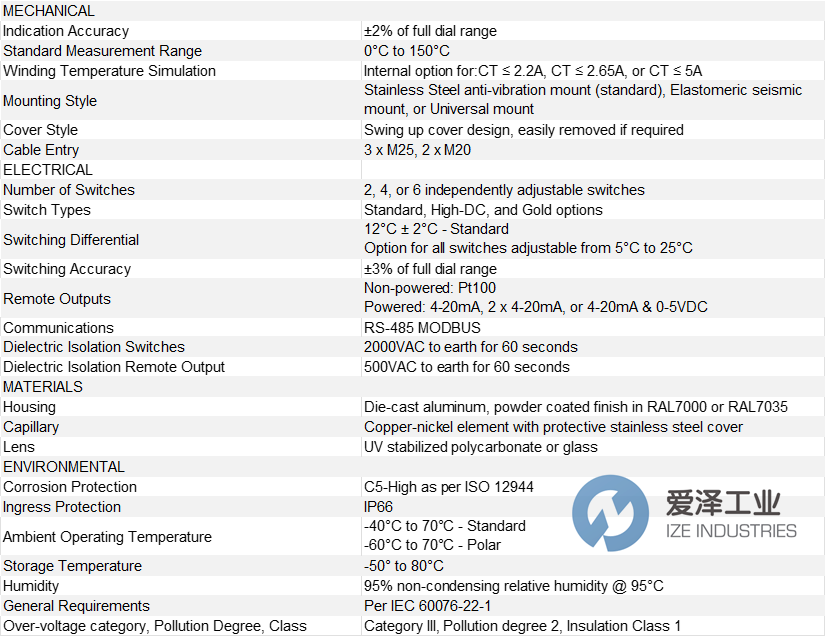

QUALITROL温度指示器AKM345系列技术参数

QUALITROL温度指示器AKM345系列介绍

AKM345 GEN3 OTIWTI ™是AKM345 GEN3的代表，它代表着未来油温及绕组温度指示技术，适用于各类变压器。AKM345 GEN3 采用与前几代产品相同的卓越波纹管技术，并新增了支持变压器数字化的功能，以及满足所有规格要求的标准选件。全新改进的设计使产品更加可靠耐用，标配IP66防护等级和C5-High防腐等级。波纹管技术可实现集成绕组温度模拟，并能够驱动多达6个可调开关和各种远程输出，用于监控应用。

特征

独创的波纹管技术温度指示器，集成绕组温度模拟功能

全新 RS-485 Modbus 数字通信选项，允许将更多数据轻松集成到监控系统中

对于需要本地和远程监控的安装，提供双模拟输出选项

*多 6 个完全独立的开关用于控制和报警电路

可选可调开关差速器，用于微调冷却操作

标准开关额定电流高达 15 安培 VAC，*高 10 安培 DC 开关可用于更高的 VDC 负载（磁吹熄灭、MBO）

提供多种模拟输出类型 — 4-20mA、0-5VDC、Pt100

IP66 标准防护等级

C5-符合 ISO 12944 的高标准

极地选项可在低至 -60°C 的温度下运行

简便的一体化绕组温度安装，无需外部设备

经过时间验证的可靠且准确的技术

新型铰链式或可拆卸盖板，方便在支架或控制柜中安装时接触接线

与前几代 AKM345 相同的安装空间和安装选项

单一外壳设计无需额外的外部配件

The AKM345 GEN3 OTIWTITM is the future of oil and winding temperature indication for transformers of all classes from the industry leader. The AKM345 GEN3 utilizes the same great bellows technology as previous generations with new features to support the digitization of transformers and standard options to meet all specification requirements. The new and improved design makes for an even more reliable and robust product with IP66 ingress protection and C5-High corrosion protection as a standard. The bellows technology allows for integrated winding temperature simulation and the ability to drive up to 6 adjustable switches and various remote outputs for monitoring applications.

Features

The original bellows technology temperature indicator with integrated winding temperature simulation

All new RS-485 Modbus digital communication option to allow more data to be easily integrated into monitoring systems

Dual analog output options for installations where local and remote monitoring is required

Up to 6 fully independent switches for control and alarming circuits

Optional adjustable switching differential to fine tune cooling operation

Standard switch rated for up to 15 Amps VAC and up to 10 Amp DC switches available for higher VDC loads (magnetic blow out, M.B.O.)

Various analog output types available — 4-20mA, 0-5VDC, Pt100

IP66 standard ingress protection

C5-High standard as per ISO 12944

Polar option for operation down to -60°C

Easy all-in-one winding temperature installation, no need for external equipment

Reliable and accurate technology proven over time

New hinged or removable cover for easy access to wiring when mounting on a bracket or in a control cabinet

Same installation footprint and mounting options as the previous generations AKM345

Single enclosure design eliminates the need for additional external accessories

QUALITROL温度指示器AKM345系列其他常用型号：

QUALITROL AKM345-00422628-T

QUALITROL AKM345-00402316-T

QUALITROL AKM345-00402935-T

QUALITROL AKM345-00402263-T

QUALITROL AKM345-00033464

QUALITROL Temperature indicator NEW + ORIGINAL+ ONE YEAR WARRANTY
