爱泽工业2025年9月部分到货产品专题及库存——AIR-LOGIC篇

如下为我司爱泽工业IZE_Industries本月到货AIR-LOGIC相关产品，欢迎致电索取样本资料和产品信息。

AIR-LOGIC节流孔

AIR-LOGIC节流孔F-2815-051-B80

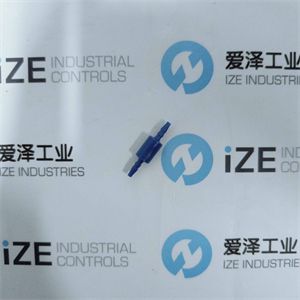

AIR-LOGIC节流孔F-2815-071-B80

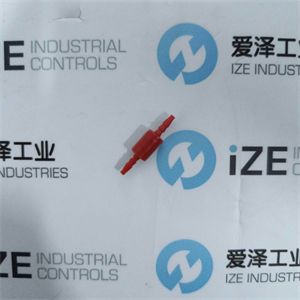

AIR-LOGIC节流孔F-2815-201-B80


AIR-LOGIC节流孔F-2815-251-B80

AIR-LOGIC针阀F282240B80KSSV


AIR-LOGIC过滤器F9705B80

AIR-LOGIC调压阀R-7060222BWK


AIR-LOGIC压力开关F510060MM.1B

AIR-LOGIC节流孔F-2815系列介绍

模制节流孔是*简单的流量控制方法，也是 Air Logic 的产品系列之一。其工作原理是流量限制，节流孔直径在零件编号中标识，并通过分配给每个节流孔尺寸的颜色代码进行标识。除了节流孔直径外，Air Logic 还控制许多影响节流孔总流量的较小因素。正因如此，Air Logic 的节流孔才得以在各种不同的市场中提供准确可靠的流量性能，并赢得客户的信赖。所有 Air Logic 产品均在美国精密模制、组装和测试。

Molded orifices are the simplest method of flow control and are one of Air Logic's best-selling product lines. They work on the principal of Flow Restriction with the orifice diameter being identified in the part number and by color codes assigned to each orifice size. In addition to orifice diameter, Air Logic controls many smaller factors that have an impact on the total restriction of the orifice. This is why Air Logic's orifices are trusted to provide accurate and reliable flow performance across a variety of different markets. All of the Air Logics products are precision molded, assembled and tested in America.

AIR-LOGIC针阀F282240系列介绍

塑料针阀是一种可调节的流量控制方式。针阀销和阀体内部形成一个可调节的节流孔，用于限制流量。当无法确定确切流量或需要补偿系统其他部件的流量变化时，这种阀非常实用。极细的螺纹确保调节精度。螺纹过盈会增加摩擦力，降低因振动导致流量变化的可能性。所有 Air Logics 产品均在美国组装和测试。塑料针阀均经过密封性和性能测试。

Plastic Needle Valves are an adjustable method of flow control. Internally, the pin and body create an adjustable orifice that restricts flow. Useful for instances when the exact flow rate hasn't been determined or to compensate for flow variation in other parts of the system. Very fine threads ensure adjustment accuracy. Thread interference increase the friction and reduce the likelihood of vibrations causing a change in the flow rate. All of the Air Logics products are assembled and tested in America. Plastic needle valves are tested for sealing and performance.

AIR-LOGIC过滤器F970系列介绍

螺纹直列式过滤器可保护气动或液体回路中的敏感设备免受系统污染。过滤器采用扁平不锈钢编织结构，适用于小型设备或与系统级过滤系统协同工作的大型系统。直列式过滤器的流体方向不受限制，过滤器两侧的过滤面积和滤筒容积相等。螺纹直列式过滤器是 Air Logic 产品中过滤面积*大的过滤器。

螺纹直列式过滤器通常用于防止系统或设备内部产生的碎屑。例如，组装过程中产生的聚四氟乙烯胶带碎屑、阀门上破损的 O 形圈以及螺纹上的加工碎屑。

螺纹连接是一种便捷的连接方式，适用于各种应用。该产品可与 Air Logic 的接头产品线完美结合，满足特定应用需求，例如旋转功能和可更换过滤器应用。

Threaded inline filters protect sensitive devices from system contamination in a pneumatic or liquid circuit. Filters are a flat stainless steel weave meant for small devices or for larger systems working in tandem with system-wide filtration. There is no flow orientation to the inline filters, the filtered area and canister volume are equal on both sides of the filter. Threaded inline filters offer the largest filtered area in Air Logic's offerings.

Threaded inline filters are commonly used to protect against debris generated inside of a system or device. Ex. Teflon tape debris during assembly, broken o-rings from valves, machining chips from threads.

Threaded connections are a convenient way to connect in a variety of applications. This product combines well with Air Logic's fitting product line for application specific requirements like swivel capability, and replaceable filter applications.

AIR-LOGIC调节器R7000系列介绍

模块化超小型精密压力调节器专为精确调节压力而设计，是仪器仪表和工业应用的选择。该压力调节器具有20圈调节范围，调节范围为0.5至100 PSI。*大供压为150 PSI。提供四种调节范围：10 PSI、30 PSI、60 PSI和100 PSI。标准配置配备调节旋钮，也可选择加长1/4英寸轴以安装调节旋钮，或配备外露螺丝刀调节压力范围。

独特的模块化燕尾槽设计使该调节器可以单独使用，也可以组装成模块化气动元件组合。

The Modular Subminiature Precision Pressure Regulator is designed for precise regulation of pressure. It is ideal for instrumentation and industrial applications. The pressure regulator has a 20 turn adjustment range from 0.5 to 100 PSI. Maximum supply is 150 PSI. Four adjustment ranges are available: 10 PSI, 30 PSI, 60 PSI and 100 PSI. The standard device is furnished with an adjustment knob and is also available with an extended 1/4" shaft to accept an adjustment knob or furnished with an exposed screwdriver adjustment by which the pressure range can be adjusted.

The Unique Modular Dovetail design allows the regulator to be used individually or assembled into a modular combination of pneumatic components.

AIR-LOGIC压力开关F5100系列介绍

标准压力开关系列提供多种电气额定值。15A 和 0.1A 是*常见的型号，通常交货周期*短。建议使用 15A 型号直接控制大多数电流消耗设备。0.1A 型号的开关采用镀金触点，建议用于低电流应用，例如 PLC 和微控制接口。其他电气选项可根据特定应用需求提供。

压力开关将信号压力施加到由弹簧力抵抗的隔膜上。当压力信号力大于弹簧力时，达到设定点（也称为“开启”压力），内部机构动作并改变电气状态。

当开关跳闸时，常开电路闭合，常闭电路断开。开关将保持此状态，直到压力信号降至其复位点（也称为“关闭”压力）以下。

“开启”压力和“关闭”压力之间的差值定义为开关的压差或滞后。这对于压力开关控制的压缩机系统等应用而言是一项重要特性。例如，系统的能耗和容量以及开关的偏差将决定压缩机的运行频率。

可以通过拆下圆形盖板并旋转平头螺钉来调整开关。顺时针调整将提高设定点。逆时针调整将降低设定点（压力）。不建议调整预设开关。请勿将上方的平头螺钉旋出至与阀体齐平。

The standard pressure switch line with a variety of electrical ratings available. 15A and .1A are the most common versions and will typically have the shortest lead times. 15A is recommended for direct control of most current drawing devices. The .1A switch selection has gold plated contacts and is recommended for low amperage applications such as PLC and micro controlled interface. Other electrical options are available for specific application requirements.

Pressure switches apply signal pressure to a diaphragm that is opposed by a spring force. When then pressure signal force is greater than the spring force it reaches its set-point (also called “On” pressure), the internal mechanism moves and changes the electrical state.

When the switch trips, the normally open circuit closes and the normally closed circuit opens. The switch will remain in this state until the pressure signal drops below its reset point (also called “Off” pressure).

The difference between the “On” pressure and the “Off” pressure is defined as the Differential or Hysteresis of the switch. This is an important characteristic for applications such as pressure switch-controlled compressor systems. For instance, the consumption and capacity of the system along with the differential of the switch will determine how often the compressor runs.

Adjustments can be made to the switch by removing the round cover and turning the flat head screw. Clockwise adjustments will raise the Set point. Counter clockwise adjustments will lower the setpoint (on pressure). Adjusting preset switches is not recommended. Do not back out the flat head screw above flush with the body.

AIR-LOGIC常用产品型号：

AIR LOGIC F-2815-050-B80

AIR LOGIC F-2815-101-B80

AIR LOGIC F-2815-401-B80

AIR LOGIC F2815041

AIR LOGIC F2815041B80

AIR LOGIC F2815050

AIR LOGIC F2815050B80

AIR LOGIC F2815051

AIR LOGIC F2815051B80

AIR LOGIC F2815051PP

AIR LOGIC F2815071

AIR LOGIC F2815071B80

AIR LOGIC F2815101

AIR LOGIC F2815101B80

AIR LOGIC F2815121

AIR LOGIC F2815121B80

AIR LOGIC F2815141PC

AIR LOGIC F2815161

AIR LOGIC F2815161B80

AIR LOGIC F2815201

AIR LOGIC F2815201B80

AIR LOGIC F2815251

AIR LOGIC F2815251B80

AIR LOGIC F2815301

AIR LOGIC F2815301B80

AIR LOGIC F2815401

AIR LOGIC F282240B80KSSV

AIR LOGIC F282240B80KSSVWS

AIR LOGIC F282240B80KSSVWSE

AIR LOGIC F282240B80KSSVWSV

AIR LOGIC F282240B85KSSWS

AIR LOGIC F282240B85KSSWSE

AIR LOGIC F282240B85KSSWSV

AIR LOGIC F282240KSSWS

AIR LOGIC F282240KSSWSE

AIR LOGIC F282240KSSWSV

AIR LOGIC F282241B80KSSWS

AIR LOGIC F282241B80KSSWSE

AIR LOGIC F282241B80KSSWSV

AIR LOGIC F282241B85KSSWS

AIR-LOGIC F-2815-051-B80

AIR-LOGIC F-2815-071-B80

AIR-LOGIC F-2815-101-B80

AIR-LOGIC F-2815-161-B80

AIR-LOGIC F-2815-201-B80

AIR-LOGIC F-2815-251-B80

AIR-LOGIC F-2815-301-B80

AIR-LOGIC F-2815-401-B80

AIR-LOGIC F510030FM

AIR-LOGIC F510030FM.1B

AIR-LOGIC F510030FM10A

AIR-LOGIC F510030FM25A

AIR-LOGIC F510030FM3A

AIR-LOGIC F510030FM5A

AIR-LOGIC F510030FMB85.1B

AIR-LOGIC F510030FMB853A

AIR-LOGIC R-7060-0B0B-W/K

AIR-LOGIC R-7060-0B0B-W/S

AIR-LOGIC R-7060-0B0B-WO/S

AIR-LOGIC R-7060-0G0B-W/K

AIR-LOGIC R-7060-0G0B-W/S

AIR-LOGIC R-7060-0G0B-WO/S

AIR-LOGIC R-7060-0H0B-W/K

AIR-LOGIC R-7060-0H0B-W/S

AIR-LOGIC R-7060-0H0B-WO/S

AIR-LOGIC R-7060-0I0B-W/K

AIR-LOGIC R-7060-0I0B-W/S

AIR-LOGIC R-7060-0I0B-WO/S

AIR-LOGIC R-7060-0J0B-W/K

AIR-LOGIC R-7060-0J0B-W/S

AIR-LOGIC R-7060-0J0B-WO/S

AIR-LOGIC R-7060-1B1B-W/K

AIR-LOGIC R-7060-1B1B-W/S

AIR-LOGIC R-7060-1B1B-WO/S

AIR-LOGIC R-7060-1G1B-W/K

AIR-LOGIC R-7060-1G1B-W/S

AIR-LPGIC F97043

AIR-LPGIC F97043B80

AIR-LPGIC F97043B85

AIR-LPGIC F97043B86

AIR-LPGIC F97043P80

AIR-LPGIC F97043P85

如果您需要完整的AIR-LOGIC的相关技术咨询，请随时致电爱泽工业，或者访问网站,我们将尽全力解决您的问题。
