爱泽工业2025年12月部分到货产品专题及库存——SEW配件篇

如下为我司爱泽工业IZE_Industries本月到货SEW配件相关产品，欢迎致电索取样本资料和产品信息。

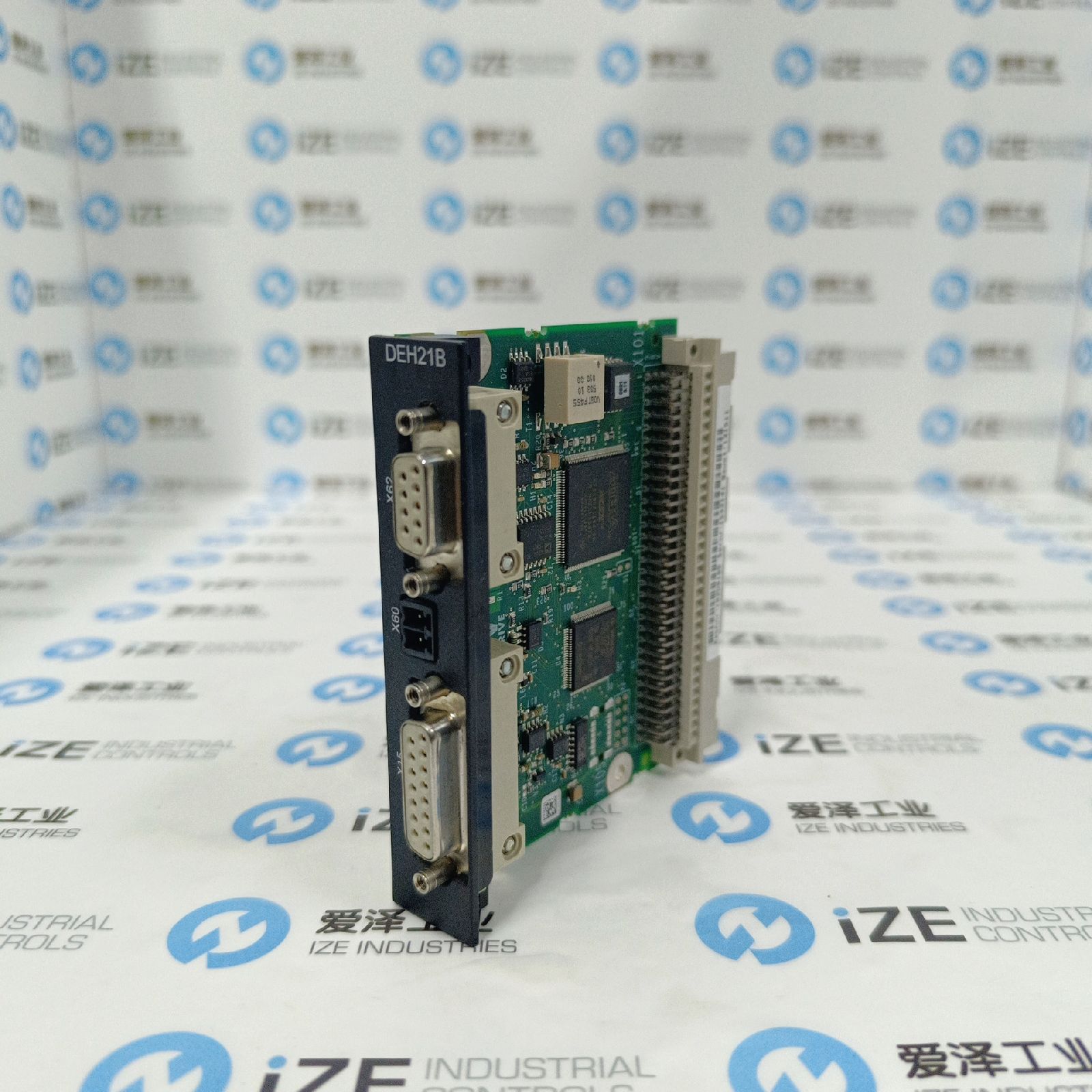

SEW模块DEH21B


SEW通讯模块DFP21B/UOH11B

SEW整流器BGE1.5 8253854

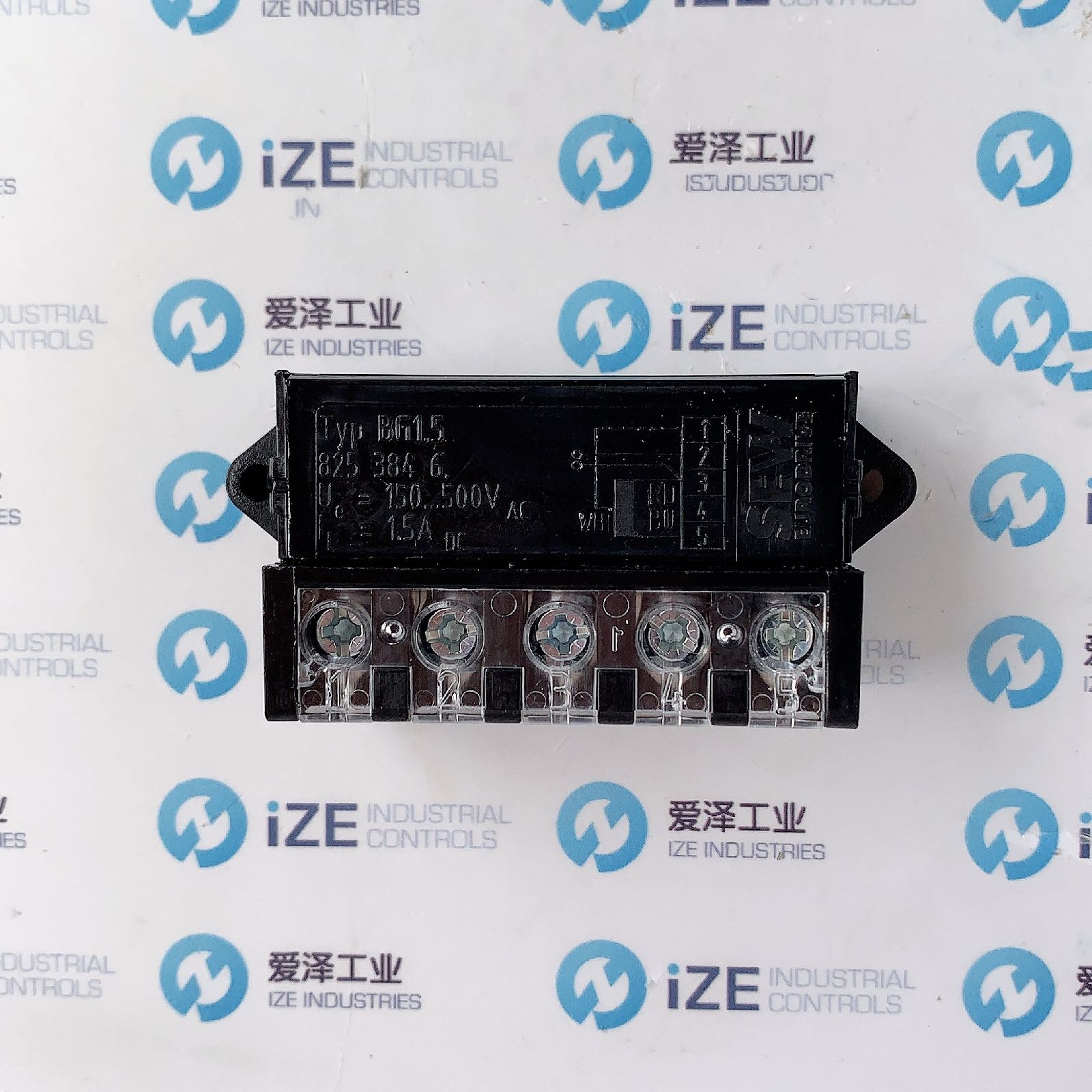

SEW整流器BG1.5 8253846

SEW刹车BMG122


SEW刹车片BE3032

SEW驱动器面板DBG60B-10


SEW线缆01995901

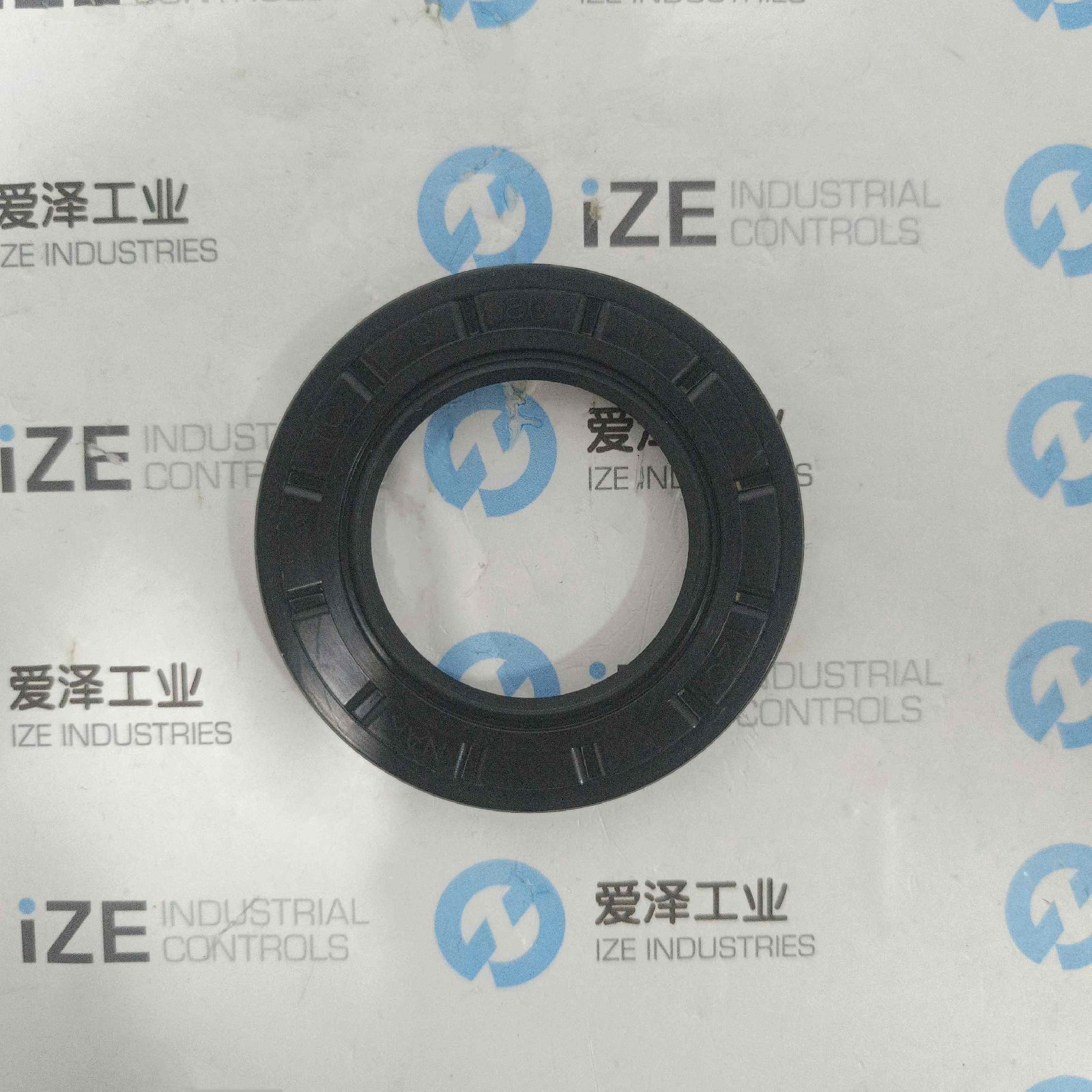

SEW油封W BASF55X90X10-NBR


SEW油封W BASF50X65X10-NBR

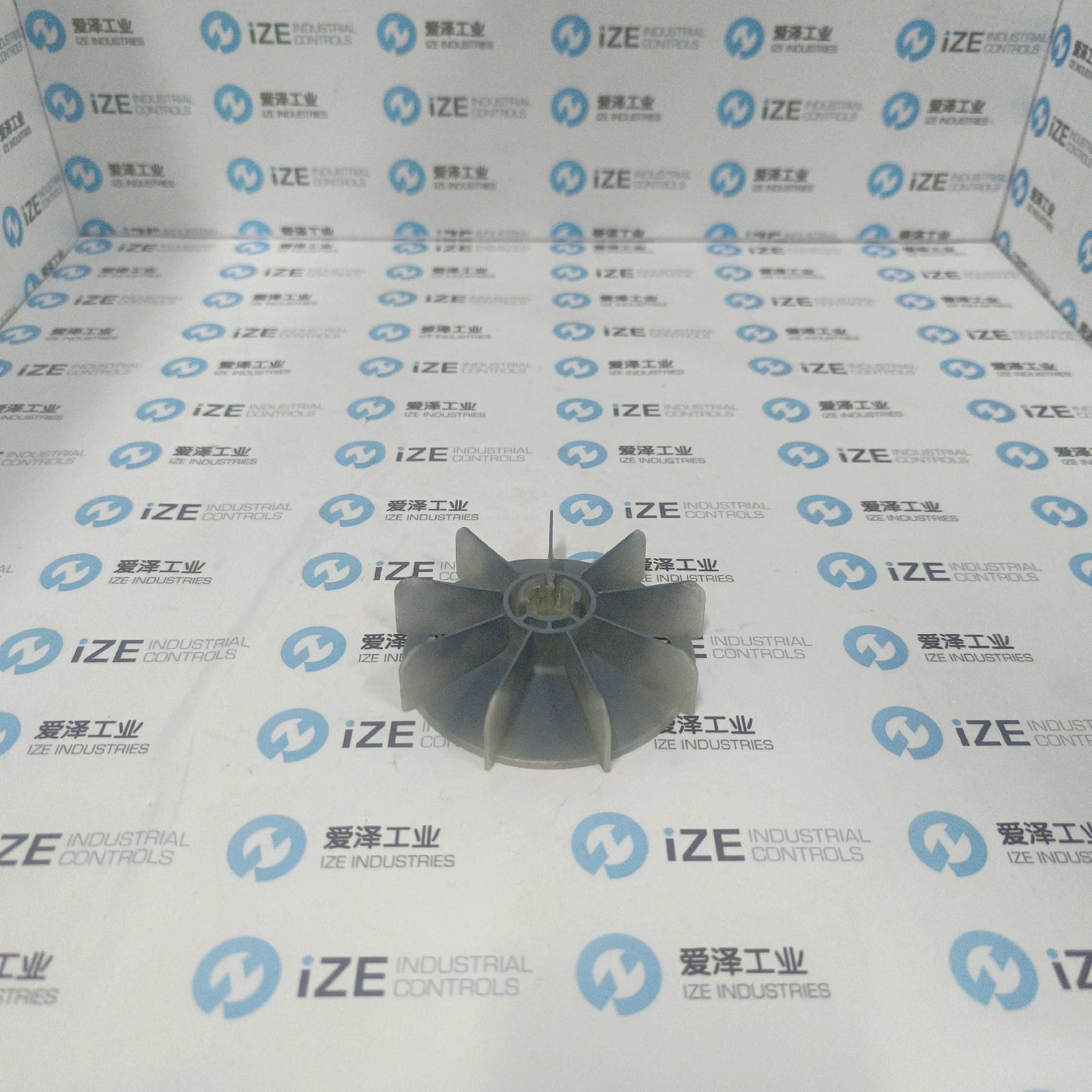

SEW电机用风扇叶RIMSS2


SEW电机罩

SEW整流器BG系列介绍

BG制动整流器 - 适用于100及以下机架尺寸，不适用于100以上机架尺寸

BG制动整流器是一款半波整流器，具有过压保护功能。

如果对制动器的释放响应时间没有特殊要求，则该整流器适用于小型电机。它不能在环境温度较高或制动器冷却条件不利的情况下使用。

The BG Brake Rectifier - Standard for frame sizes up to 100, not available on frame sizes above 100

The brake rectifier BG is a half-wave rectifier with overvoltage protection.

This rectifier is used on small motors if no special requirements are needed with respect to the release reaction times of the brake. It cannot be used at elevated ambient temperatures or with unfavorable cooling conditions for the brake.

SEW整流器BGE系列介绍

BGE制动整流器 - 112M及以上机架尺寸电机标配，71至100机架尺寸可选配

BGE制动整流器是一款半波整流器，带有过压保护元件和电子控制装置，可缩短制动器释放响应时间。

BGE整流器通过以下方式改进制动器运行：首先利用超强磁化释放制动器，然后通过降低磁化强度牢固地保持静止盘片。由于制动器释放响应时间极短，制动器在电机建立扭矩并开始旋转之前即可释放。该制动系统具有磨损极小、使用寿命长、开关性能优异等显著特点。

在持续释放状态下，电流损耗降至*低，因此制动器的热负荷非常低。

建议在以下情况下使用BGE制动整流器：

·需要较短的制动器释放响应时间。

·启动频率较高。

·环境温度较高，或者当电机静止或低速运转时，需要保持制动器持续释放状态。

The BGE Brake Rectifier - Standard for motor frame sizes 112M and larger, optional on frame sizes 71 to 100

The BGE brake rectifier is a half-wave rectifier with over-voltage protection elements and electronic control for reducing the brake release reaction times.

The brake operation is improved by the BGE rectifier in that it releases the brake initially by super-magnetization and then holds the stationary disc securely with reduced magnetization. Due to the exceedingly reduced brake release reaction time ti the brake is released before the motor can build up torque and begin to rotate. Minimum wear with maximum service life and excellent switching ability are the outstanding features of the brake system.

In the continuous released state the current losses are reduced to the necessary minimum so the thermal loading of the brake is very low.

The use of the BGE Brake Rectifier is recommended if:

·Short brake release reaction times are required.

·High starting frequencies are encountered.

·High ambient temperature is present or the brake is required to be in the continuous released state while the motor is at rest or operating at low speeds

SEW刹车盘BM, BMG和 BE系列介绍

SEW 的制动系统满足严格的设计标准，从需要简单保持制动器的电子应用到需要高动态性和精确定位的机械应用，均可适用。

DT/DV 电机可安装 BM 和 BMG 制动器；DR 电机可安装 BE 制动器。

• 低制动电机惯性可*大限度地提高位置精度和占空比。

• 快速释放可更大限度地延长刹车片寿命并减少刹车片磨损

• 多种弹簧组合可提供多种制动扭矩选择

• 对敏感电子设备的无线电干扰低

• 专利阻尼板可降低噪音和降低声级（dB）

• 专利低能耗保持线圈，功耗极低

• 发热量极低，可在较高的环境温度下运行

• 直流线圈能够承受交流电源的电流波动，而不会产生恼人的制动“咔嗒”声

• 低维护成本

• 袖珍的

SEW’s patented brake system meets rigid design criteria ranging from electronic applications that require a simple holding brake to mechanical applications that require high dynamics and accurate positioning.

DT/DV motors accept the BM and BMG brakes; DR motors accept the BE brake.

• Low brakemotor inertia maximizes position accuracy and duty cycle.

• Fast release maximizes brake life and reduces brake lining wear

• Multiple spring combinations provide several choices for brake torque

• Low radio interference with sensitive electronic equipment

• Patented damping plate provides reduced noise and low sound level (dB)

• Patented low energy holding coil consumes minimal power

• Minimal heat generation permits operation in higher ambient temperatures

• DC coil tolerates current fluctuations from the AC supply without nuisance brake “clacking”

• Low maintenance

• Compact

SEW油封介绍

油封用于密封旋转轴，既能保护齿轮箱免受外部灰尘污染，又能防止润滑油泄漏污染生产环境。油封必须能够承受变速运转、齿轮箱内部压力、各种温度要求以及其他一系列工况。

Oil seals are used to seal rotating shafts and to both protect the gear unit against dirt from outside and to protect the production environment from leaking lubricant. The oil seals must be able to withstand variable speeds, the pressure inside the gear unit, various temperature requirements and a range of other conditions.

SEW配件常用型号：

SEW 01986341/10.0

SEW 01995901-30M

SEW 01995901-50

SEW 13324535

SEW 13324551

SEW 13324586

SEW 13327429

SEW 13327437

SEW 13354345

SEW 13354353

SEW 13354361

SEW 13354388

SEW 13354396

SEW 13421603

SEW BE05A

SEW BE05B

SEW BE11A

SEW BE11B

SEW BE1A

SEW BE1B

SEW BE1C

SEW BE2

SEW BE20

SEW BE30

SEW BE3032

SEW BE5A

SEW BE5B

SEW BG 1.2

SEW BG 1.4

SEW BG 1.5

SEW BG 2.4

SEW BG 3.0

SEW BGE 1.0

SEW BGE 1.4

SEW BGE 3

SEW BGE1.5

SEW BM30

SEW BM62

SEW BMG05

SEW BMG1

SEW BMG122

SEW BMG15

SEW BMG2

SEW BMG4

SEW BMG61

SEW BMG8

SEW BMG8(1841264)

SEW BS24

SEW BSG

SEW FBG11B

SEW DBG60B-10

SEW DRN100/DR100

SEW iBMP 3.1

SEW DFP21B/UOH11B

SEW DEH21B

SEW DFP21B

SEW DEH11B

SEW UOH11B

SEW DFE24B

SEW W AS45X75X8-NBR

SEW W B1SF55x84x8/11,5-FKM

SEW W BASF50X65X10-NBR

SEW W BASF50X80X10-NBR

SEW W BASF55x90x10-FKM

SEW W BASF55X90X10-NBR

如果您需要完整的SEW的相关技术咨询，请随时致电爱泽工业，或者访问网站,我们将尽全力解决您的问题。
