METRIX变送器MX2034-01-02-05-06-01-024-00

METRIX总部位于美国，成立于1965年，作为工业振动监测系统的优质供应商，服务于许多的冷却塔，汽轮机，往复式压缩机和其它旋转复式机械的制造商和用户。

METRIX主营产品:

METRIX接近开关

METRIX地震仪

METRIX振动开关

METRIX摇床

METRIX监控器

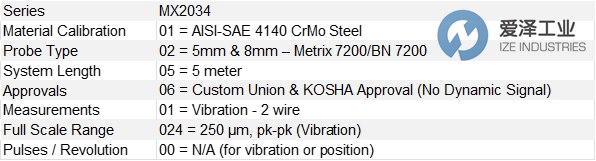

METRIX变送器MX2034-01-02-05-06-01-024-00技术参数

METRIX变送器MX2034系列介绍

Metrix MX2034采用标准工厂预配置校准以及现场自定义曲线，提供线性响应，符合API 670精度规范。MX2034已证实可与众多制造商的探头和电缆兼容。它适用于各种探头尖端直径、延长电缆长度或线性量程，以满足技术人员的需求。MX2034接近式变送器可用于监测振动水平、转子位置变化和转速。该变送器提供4-20 mA输出，可供控制系统、可编程逻辑控制器 (PLC) 和监控与数据采集 (SCADA) 系统使用。这些系统已被证明能够对重大机器状态变化提供早期预警。

用户只需一台发射器，即可在现场切换探头类型、更改系统长度并更换目标材料。MX2034能够消除相邻安装的两个接近式探头之间的串扰，BNC接口处测得的动态输出信号可根据应用需求配置为正极性或负极性，并且发射器还能抑制来自系统外部的瞬态电脉冲。借助4针连接器，MX2034的用户可以将动态信号输出发送至*远100米外的振动监测系统。MX2034还具备许多其他高级功能，客户可利用这些功能来优化其接近式发射器系统的价值。

The Metrix MX2034 uses standard factory pre-configured calibrations as well as custom field-generated curves that provides a linear response, meeting API 670 accuracy specifications. The MX2034 has proven to work with many manufacturers’ probes and cables. It works with a variety of probe tip diameters, extension cable lengths, or linear ranges that the technician is working with. It’s possible to monitor vibration levels, changes in rotor position, and speed with the MX2034 Proximity Transmitter. The transmitter provides a 4-20 mA output that can be used by control systems, Programmable Logic Controllers (PLC) and Supervisory Control and Data Acquisition (SCADA) Systems. These systems have been proven to be able to provide early warning of significant machine condition changes.

With a single transmitter, users can switch probe type, change system length, and alter target materials in the field. The MX2034 is capable of eliminating the cross-talk between two adjacently installed proximity probes, the dynamic output signal measured at the BNC can be configured for positive or negative polarity depending upon the application, and transient electrical spikes from outside the system can be suppressed by the transmitter. With the 4-pin connector, users of the MX2034 can send the dynamic signal output to a vibration monitoring system up to 100m away. There are many other advanced features of the MX2034 that customers can take advantage of to optimize the value of their proximity transmitter system.

METRIX变送器MX2034系列其他常用型号：

METRIX MX2034-01-02-05-06-01-024-00

METRIX MX2034-01-08-05-05-01-003-00

METRIX MX2034-11-01-05-05-02-051-00

METRIX MX2034-01-06-05-05-05-057-00

METRIX MX2034-11-01-05-05-03-362-01

METRIX MX2034-40-06-09-05-02-077-00

METRIX MX2034-10-01-09-05-01-024-00

METRIX MX2034-10-01-05-05-01-024-00

METRIX transmitters NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于METRIX变送器MX2034-01-02-05-06-01-024-00的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for METRIX products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website: www.ize-industries.com.

METRIX变送器MX2034系列MX2034-01-02-05-06-01-024-00技术参数及介绍
