ELECTRONICON电容E33.D68-501015

ELECTRONICON公司的前身RFT/VEB ELEKTRONI公司成立40年代。ELECTRONICON的主营产品有整流器，滤波装置，控制器，电阻和电容等。

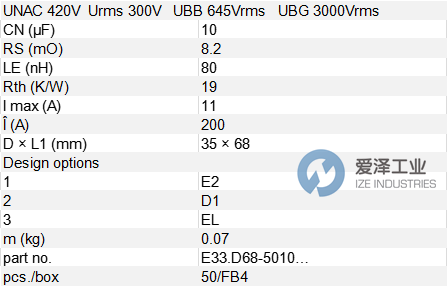

ELECTRONICON电容E33.D68-501015技术规格



ELECTRONICON电容E33系列介绍

E12和E33系列电容器适用于：

频率为50或60 Hz的电网中荧光灯（如荧光灯、卤素和金属蒸汽灯、高压汞蒸汽灯、钠灯）的单独功率因数校正，

单相电源上感应电动机和三相异步电动机的运行（例如，家用电器、水泵、风扇、电机驱动器等）

工业功率因数校正和电能质量改进的应用

其他正弦电压的电力电子交流应用。

其自愈型聚丙烯薄膜绕组元件浸泡在环保植物油中，设计满足对使用寿命和功能安全性的*高要求，即使在高工作温度和高湿度等极端条件下也能正常工作。

E12/E33系列符合IEC/EN 61048照明标准下的“类型B”分类以及IEC/EN 60252-1电机电容器标准下的“Class S2”分类。

E12系列可提供高达130µF 300Vrms，已被VDE根据IEC/EN 60252-1标准批准为“Class S2”，并通过UL 810/840认证。E33系列可提供高达100µF 450-500Vrms，已被VDE根据IEC/EN 60252-1标准批准为“Class S2”，并通过UL 810/840认证。

密封铝罐配有一体化的过压安全机制（断路机制，“BAM”），在故障发生时通过将电容器不可逆地与电源断开来帮助防止或限制灾难性故障。请注意在第20页及其后的关于在关键环境中使用电容器的安全注意事项。

需要注意的是，仅有断路机制并不能使电容器完全防故障。像任何安全设备一样，过压机制只能在特定的操作条件下履行其功能。

Our capacitors of the E12 and E33 series are universally-suited for

•individual power factor correction in fluorescent lighting (e.g. fluorescent

lamps, halogen and metal vapour lamps, high-pressure mercury vapour lamps, sodium lamps) in mains with a frequency of 50 or 60 Hz,

• operation of induction motors and three phase asynchronous motors on

single phase mains supplies (e.g. white goods, pumps, fans, motor drives etc.)

• applications of industrial power factor correction and power quality improvement

• other AC applications in power electronics with sinusoidal voltages.

Their winding element of self-healing polypropylene film is immersed in eco-friendly vegetable oil and designed for highest requirements regarding operational life and functional safety even at high operating temperatures and other extreme conditions such as high humidity.

The E12/E33 ranges comply with the “Type B” classification under lighting standard IEC/EN61048 as well as with “Class S2” under motor capacitor standard IEC/EN 60252-1.

TheE12 range is availableupto 130µF 300Vrms. IthasbeenapprovedbyVDE as “ClassS2” to IEC/EN 60252-1, and by UL to UL 810/840. E33 can be supplied up to 100µF 450-500Vrms. It is approved by VDE as “ClassS2” to IEC/EN 60252-1, and by UL to UL 810/840.

The hermetical aluminium can is provided with an integrated overpressure safety mechanism (break-action mechanism, „ BAM“) whichhelps toprevent or limit catastrophic failures in the event of a fault by disconnecting the capacitor irreversibly from supply. Please mind our safety remarks on the use of capacitors in critical environment on page 20 f.

It has to be noted that the presence of the break action mechanism alone cannot make a capacitor absolutely fool-proof. Like any safety device, the overpressure mechanism can fulfill its function only within certain operating conditions.

ELECTRONICON电容E33系列其他常用型号：

ELECTRONICON E33.D68-501015

ELECTRONICON E33.C58-5945

ELECTRONICON E33 D68-5010

ELECTRONICON E33.D78-5012

ELECTRONICON E33.E78-5014

ELECTRONICON E33.E78-5016

ELECTRONICON E33.E78-5018

ELECTRONICON E33.E19-5028

ELECTRONICON E33.E19-5030

ELECTRONICON E33.F93-5030

ELECTRONICON E33.F19-5035

ELECTRONICON Capacitors NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于ELECTRONICON电容E33.D68-501015的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for ELECTRONICON products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website:www.ize-industries.com.

ELECTRONICON电容E33.D68-501015技术规格
