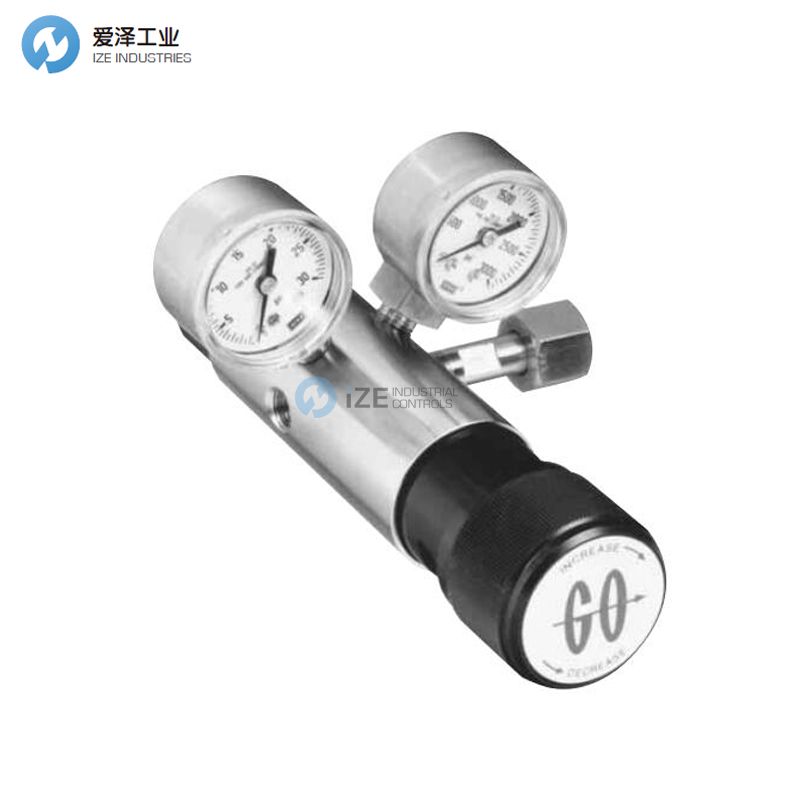

GO REGULATOR调节器C2-1F1E11110002A3A3

GO REGULATOR调节器和阀门旨在满足广泛的应用，控制压力，同时适应许多气体和液体的低至中等流速。

GO REGULATOR 提供全面的标准化和压力调节器、隔膜阀和过滤器产品组合。

GO REGULATOR调节器C2-1F1E11110002A3A3技术参数

GO REGULATOR调节器CYL-20系列介绍

现在可以使用CYL-20系列调节器实现精确的压力控制。该双级调节器由316L不锈钢和PTFE材质制成，在变化的进口压力下，出口压力变化不到0.01％，专为气体校准系统和半导体材料加工设计。

该调节器仅采用316L不锈钢、PTFE和Tefzel®材料，适用于腐蚀性介质以及具有表面吸附潜在问题的非腐蚀性介质。它支持高达6000 psig的进口压力，具有气密截止功能。操作温度范围可从−40°C变化至+260°C，出口压力范围（0–10 psig至0–500 psig）可通过带槽的旋钮方便调节。

Precision pressure control is now possible with the CYL-20 Series regulator. This two-stage regulator, constructed of 316L stainless steel and PTFE, has less than 0.01 percent outlet pressure change with varying inlet pressures and is designed for use in gas calibration systems and semiconductor materials processing.

With materials of only 316L stainless steel, PTFE and Tefzel®, this regulator is suitable for service in corrosive streams as well as non-corrosive streams with potential surface absorption problems. This regulator accepts inlet pressures up to 6000 psig and has bubble-tight shutoff. Operating temperature ranges may vary from −40° C up to +260° C and outlet pressure ranges of 0–10 psig up to 0–500 psig are easily adjustable by a fl uted knob.

GO REGULATOR调节器其他常用型号：

GO REGULATOR C2-1F1E11110002A3A3

GO REGULATOR C2-1F1E11110002A3A3-SIL

GO REGULATOR C2-2F1C13110001ACAC

GO REGULATOR C2-1H1I11115801A3A3

GO REGULATOR ELECTRICALLY HEATED REGULATORS NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于GO REGULATOR调节器C2-1F1E11110002A3A3的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for GO REGULATOR products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website:www.ize-industries.com.

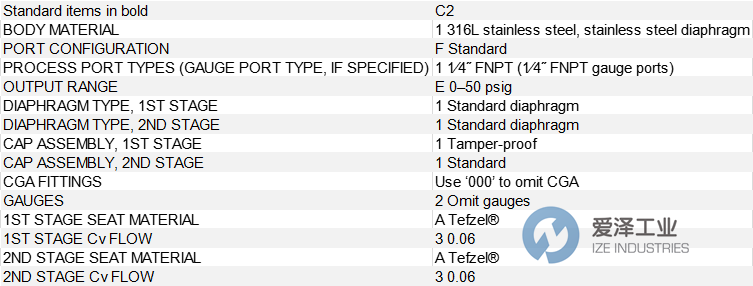

GO REGULATOR调节器C2-1F1E11110002A3A3技术参数及选型
