GFG传感器EC28

60多年来，GFG一直致力于通过开发和制造气体检测系统来保护人员、工业设施和环境。GFG拥有丰富的便携式气体检测仪和固定式气体检测系统，可为您提供适用于众多应用和行业的丰富产品选择。

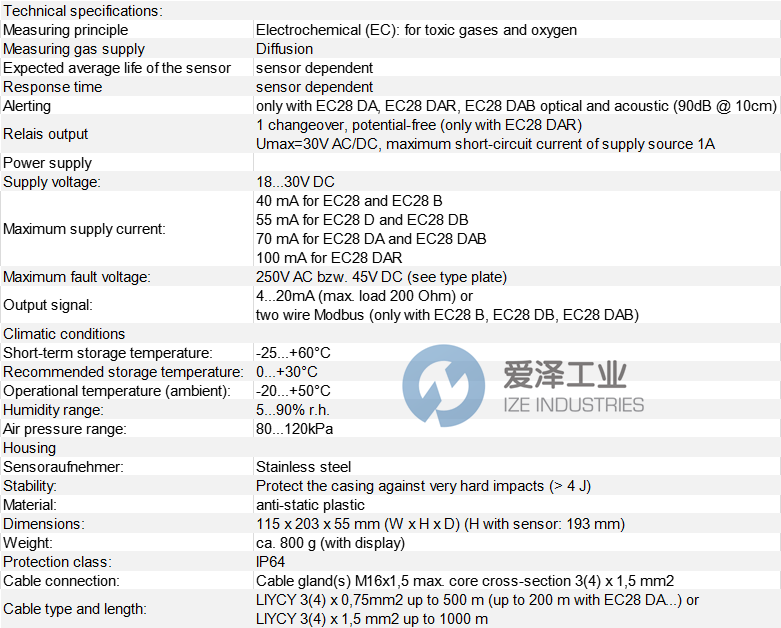

GFG传感器EC28规格介绍

GFG传感器EC28产品介绍

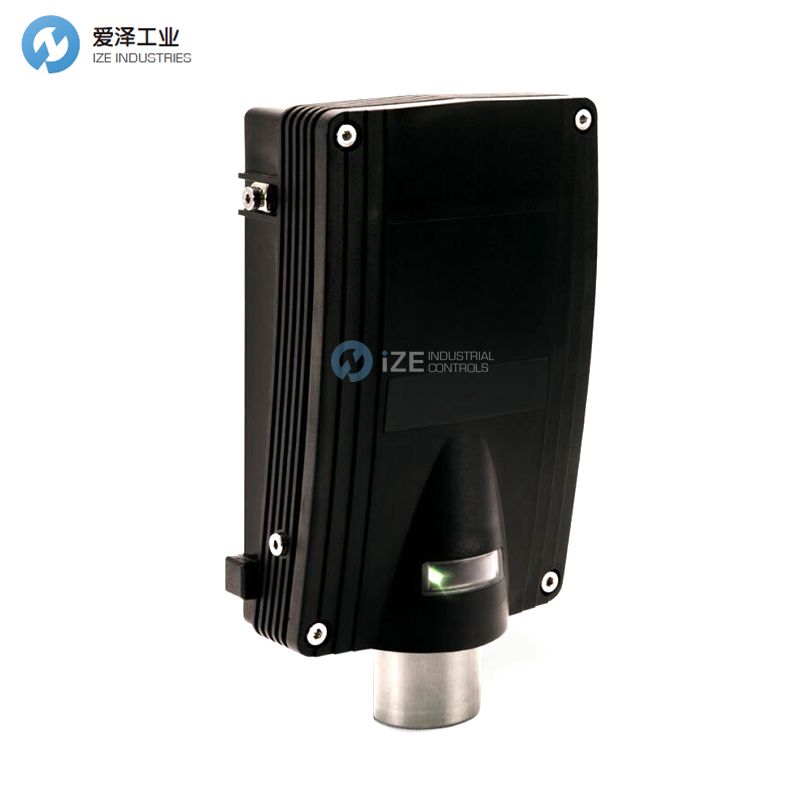

EC28 变送器

适用于有毒气体、氧气和氢气的防爆区域

无论需要监测有毒气体、氧气还是氢气，EC28变送器与GfG可靠的控制器结合使用，都是安全且具成本效益的理想解决方案。该变送器获得了ATEX认证，即使在潜在爆炸性环境中也保证安全使用。

功能安全

EC28硬件符合欧洲功能安全标准DIN EN 61508-2: 2011，适用于多种气体。在单通道（1oo1）或冗余（1oo2）配置下，其SI等级（*高可达SIL3）取决于气体类型和传感器。

通信与服务

EC28通过4-20 mA信号进行通信。采用智能传感器技术，可快速便捷地更换传感器，并可选配RC2远程控制器，实现单人校准和调整。

RC2远程控制器（可选）

氨气和氢气等气体比空气轻，相关变送器往往安装在靠近天花板的位置。为了便于维护和检修，可配备永久性安装电缆，与RC2远程控制器相连，让您随时在地面操作变送器，大大简化检测

EC28 Transmitter

For Toxic Gases, O2 and H2 in Ex Zones

Whenever toxic gases, oxygen or hydrogen need to be monitored, the EC28 transmitter combined with one of GfG‘s reliable controllers is a perfect, cost-effective solution. This ATEX-certified transmitter guarantees safe use, even in potentially explosive atmospheres.

Functional Safety

The EC28's hardware complies with the European Functional Safety Standard DIN EN 61508-2: 2011 for many gases. The SI levels (up to SIL3) in single channel (1oo1) or redundant (1oo2) use depend on the gas type and the sensor.

Communication and Service

The EC28's communication works on a 4-20 mA signal basis. Smart Sensor technology allows for quick and easy sensor replacements and the RC2 remote control can be used to make adjustments (one-person calibration).

RC2 remote control (optional)

Gases like ammonia and hydrogen are lighter than air. Transmitters to detect them are therefore installed near the ceiling. To facilitate service and maintenance work, they can be equipped with a permanently installed cable which can be connected to an RC2 remote control. This lets you access the transmitter from ground-level at all times, making inspection, calibration or maintenance work significantly easier.

Reliable Measurement & Minimal Operating Costs

The sensor and built-in temperature compensation guarantee high measuring accuracy. The long sensor service life and low maintenance requirements ensure minimal operating costs.

GFG传感器其他常用型号：

GFG EC28

GFG EC28D

GFG EC28DA

GFG EC28DAR

GFG EC28B

GFG EC28DB

GFG EC28DAB

GFG SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于GFG传感器EC28的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for GFG products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website:www.ize-industries.com.

GFG传感器EC28产品介绍
