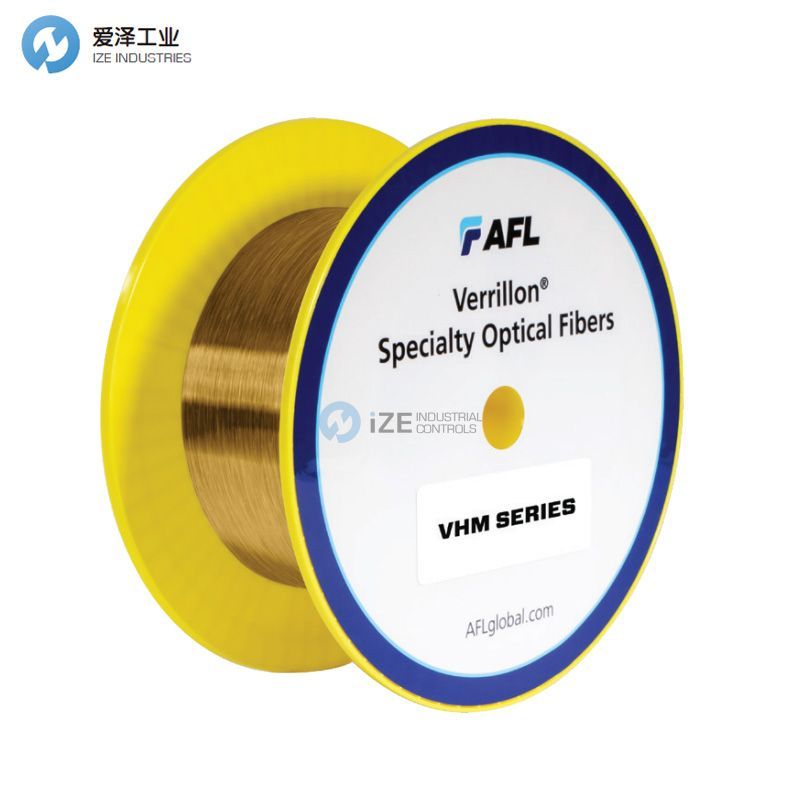

AFL光纤MMF-50-4-CP-125-4

AFL为能源、服务提供商、企业和工业市场以及许多新兴市场提供行业解决方案、产品和服务。制造、设计和安装光纤产品及相关设备。包括：光纤电缆，光纤连接，熔接机，测试和检验设备AFL 的服务组合包括与领先的通信公司合作，支持中央局、外部设备、无线和企业应用。

AFL光纤MMF-50-4-CP-125-4规格描述

AFL光纤VHM5000 系列介绍

VHM5000 系列光纤

Verrillon® AFL 的严苛环境光纤提供多种设计。VHM5000 产品是一款多模级别折射率光纤，采用优化的玻璃化学配方，具有高度抗氢气暗影的性能。VHM5000 系列提供多种涂层和涂层组合，包括聚酰亚胺、高温丙烯酸酯、硅胶-PFA 和密封碳层。通常，这些光纤应用于井下数据记录、分布式感测和成像等场合，尤其是在温度和氢气分压极端的环境中。

Verrillon 涂层光纤相比商用光纤具有极高的密封性能（Hermeticity）。提供大量数据以展示光纤的性能。此外，还提供一站式解决方案，满足客户对多束光缆密封光纤的需求（如金属套管管道）。

特点：

在高温高压环境中对氢气的玻璃抗性行业内*佳

根据应用需求提供多种保护涂层选择

适用于高压、高温及腐蚀性环境

碳涂层提供优异的抗H2及水分侵入性能

在典型运行条件下，密封光纤的预期使用寿命超过大多数要求

附带大量关于“严苛环境”下光纤性能的测试和测量数据

VHM5000 Series Fibers

Verrillon® Harsh Environment Fibers from AFL are available in a wealth of designs. The VHM5000 product is a multimode graded-index optical fiber with optimized glass chemistry for high resistance to hydrogen darkening. VHM5000 Series is available with coatings and Coating combinations, including Polyimide, high temperature acrylates, Silicone-PFA and hermetic Carbon. Typically, these fibers are used in down-hole data logging, distributed sensing and Imaging applications where the temperature and hydrogen partial pressures are extreme.

Verrillon coated fibers provide exceptionally high levels of hermeticity compared to Commercial fibers. We provide extensive data that demonstrates the performance of our fiber. In addition, we provide one-stop shopping for customers requiring multi-count cabled hermetic fibers, if required, in metal jacketing tubes.

Features

Best glass resistance to hydrogen at high temperatures and pressures in the entire industry

Wide range of protective coatings available, depending on application requirements

Suitable for use in high pressure, high temperature and corrosive environments

Carbon coating provides exceptional resistance to H2 and moisture ingression

Predicted lifetime for hermetic fiber under typical operating conditions exceeds most requirements

Extensive test and measurement data for optical fiber performance under "harsh conditions" provided with fiber

AFL光纤其他常见型号：

AFL MMF-50-4-P-125-4

AFL MMF-50-4-CP-125-2

AFL MMF-50-4-CP-125-3

AFL MMF-50-4-CP-125-4

AFL MMF-50-4-CSPFA-125-1

AFL MMF-50-4-CSPFA-125-5

AFL MMF-50-4-CSPFA-125-6

AFL MMF-50-4-CSPFA-125-7

AFL optical fiber NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业集产品开发、设计、制造、销售、服务于一体，代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于AFL光纤MMF-50-4-CP-125-4的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for AFL products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website: www.ize-industries.com.

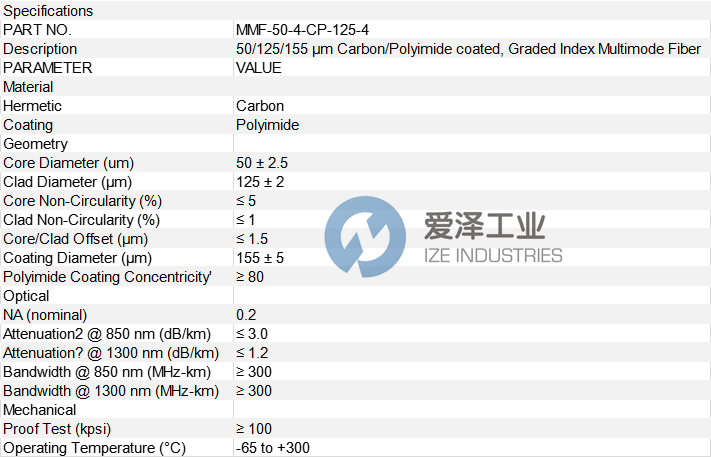

AFL光纤MMF-50-4-CP-125-4参数描述
