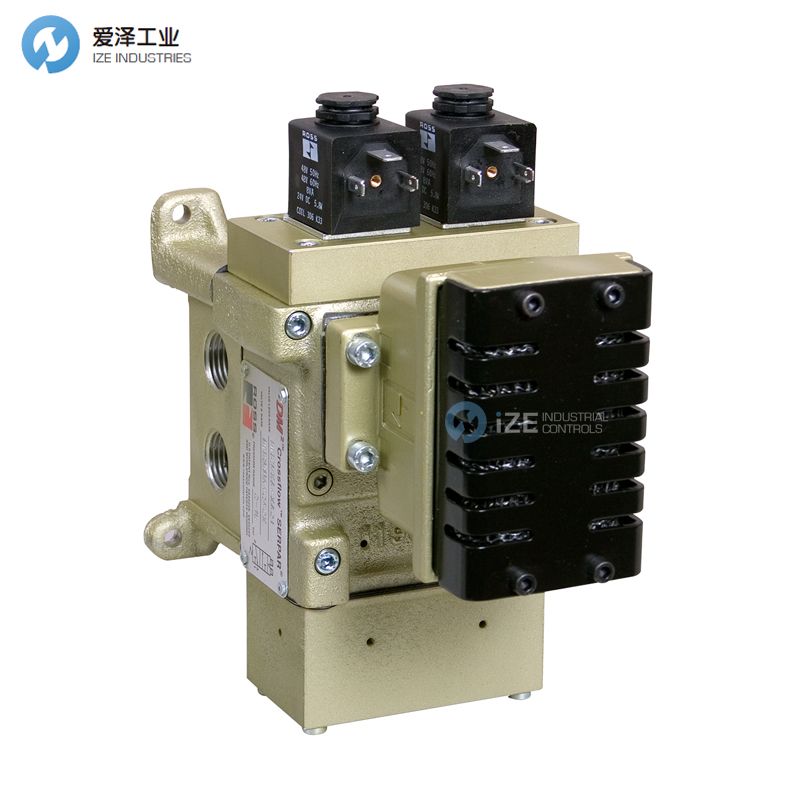

ROSS阀DM2DDB43A21

ROSS成立于1879年， 总部位于美国，专注于设计阀门。

ROSS阀DM2DDB43A21技术参数

ROSS阀DM2® D系列介绍

DM2® D 系列双阀是一款获得专利的 3/2 常闭阀（带中间锁定位置），其特点是主阀杆上带有 SERPAR® 横流通道、锥阀和滑阀。这种布置赋予了阀门流量特性和集成监控功能，并带有总记忆功能。该阀门提供动态监控和动态记忆功能。

动态监控意味着所有监控组件在每个阀门循环中都会改变状态。如果阀芯异步循环，阀门将排出下游空气并锁定，从而禁止进一步操作。

监控系统中的动态记忆功能表明，当阀门锁定时，无论空气或电气状态如何变化，阀门都将保留故障信息。DM2® 系统只能通过定义的操作/程序复位，并且不会自行复位（关闭和打开阀门），也不会在切断并重新通入进气时复位。这种自动复位会向操作员隐藏潜在危险。

The DM2® Series D double valve is a patented 3/2 normally closed valve (with an intermediate, lockout position)  distinguished by SERPAR® Crossflow passages with poppet and spool valving on the main  valve stems. This arrangement provides  the  valve’s outstanding flow characteristics and an integrated monitoring capability with total memory.  The valve provides dynamic monitoring and dynamic memory.

Dynamic Monitoring means that all monitoring components change state on every valve cycle.  Should the valve elements cycle asynchronously, the valve will exhaust downstream air and lock-out, prohibiting further operation.

Dynamic Memorywithina monitoring system indicates that when a valve lock-out occurs, the valve will retain the fault information regardless of air or electrical changes. The DM2® system can only be reset by a defined operation/procedure, and will not self-reset (turning the valve off and on) or reset when inlet air supply is removed and re-applied. Such automatic resetting would conceal potential hazards from the operator.

ROSS阀DM2D系列其他常用型号：

ROSS DM2DDB43A21

ROSS DM2DNB43A21

ROSS DM2DDB20A21

ROSS DM2DDB21A21

ROSS DM2DDB42A21

ROSS DM2DDA54A21

ROSS DM2DDA55A21

ROSS DM2DDA66A21

ROSS DM2DDA67A21

ROSS DM2DDA88A21

ROSS DM2DDB43B21

ROSS valve NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于ROSS阀DM2DDB43A21的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for ROSS products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website: www.ize-industries.com.

ROSS阀DM2D系列DM2DDB43A21技术参数
