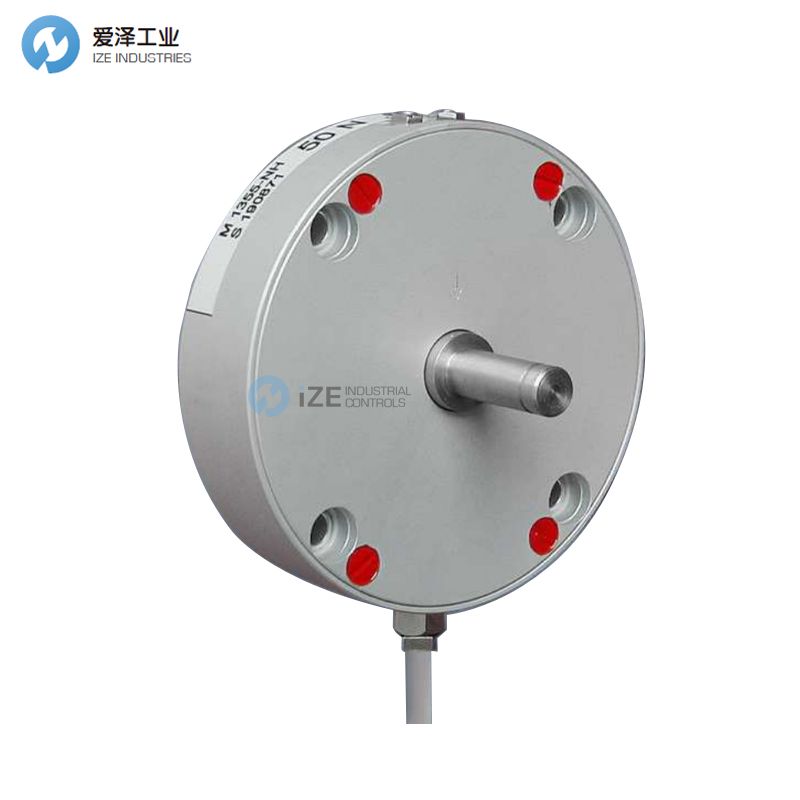

TENSOMETRIC张力传感器M1355NH2 600N

TENSOMETRIC在运行材料电子张力测量领域有超过30年的经验。TENSOMETRIC测量仪器拥有高测量精度和可靠性、长期稳定性、深思熟虑的设计、耐用可靠的系统。

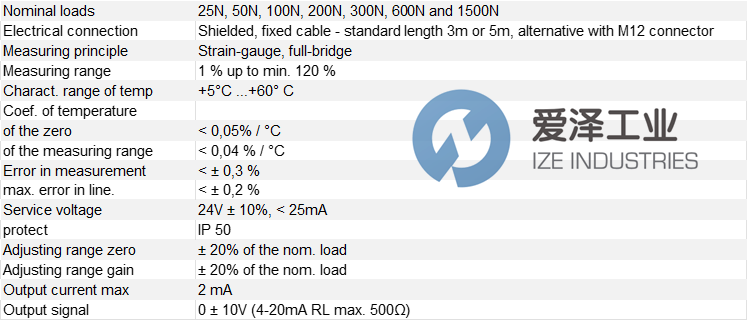

TENSOMETRIC张力传感器M1355NH系列技术参数

TENSOMETRIC张力传感器M1355NH系列介绍

M-1355-NHX系列径向力传感器是精密可靠的测量系统，具有高过载保护能力和优异的长期稳定性。

- 测量放大器具有0至±10V（4-20mA）的模拟输出，对应于额定负载的0至±100%。

- 通过侧面安装的电位器调节零点和放大倍数（校准）。

该信号可用作控制的实际值。

为了测量运行材料上的拉力，应在轴颈轴承上安装一个滚珠轴承式测量辊。

该测量辊的安装位置必须使得被测材料发生一定角度的偏转。

被测材料与测量辊的接触角可在3°至 180°之间调节。传感器会测量由偏转产生的力。

径向力与被测材料中的拉力成正比。

传感器的额定载荷应与该径向力相对应。

Radial - Force - Sensors of series M-1355-NHX are precise and reliable measuring systems, as well high overload-protected as high in long-time-stability.

- Measuring amplifier with analog output from 0 to ± 10V (4-20mA) corresponding to 0 to ± 100% of nominal load

- Adjustment of zero point and amplification (calibration) via laterally installed potentiometers

This signal can be used as actual value for controlling.

For measuring tensile forces on running material, fit a ball-bearing-mounted roller on the journal-bearing.

This measuring roller has to be mounted in a position, that the material which will be measured, will deviate in a defined angle.

Here angle of contacts, of the material which is measured - around the measuring-roller, between 3° and 180° are possible. The resulting forces, due to the deviation, are measured by the sensor.

The radial force is proportional to the tensile force, in the material which is measured.

Corresponding to this radial-force the nominal load of the sensor is to select.

TENSOMETRIC张力传感器M1355NH系列其他常用型号：

TENSOMETRIC M-1355-NH1

TENSOMETRIC M-1355-NH2

TENSOMETRIC M-1355-NH2 1500N

TENSOMETRIC M-1355-NH2 600N

TENSOMETRIC M-1355-NH2 300N

TENSOMETRIC M-1355-NH2 200N

TENSOMETRIC M-1355-NH2 100N

TENSOMETRIC M-1355-NH2 50N

TENSOMETRIC M-1355-NH2 25N

TENSOMETRIC sensor NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于TENSOMETRIC传感器M1355NH2 600N的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for TENSOMETRIC products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website: www.ize-industries.com.

TENSOMETRIC张力传感器M-1355–NH系列M1355NH2 600N技术参数及介绍
